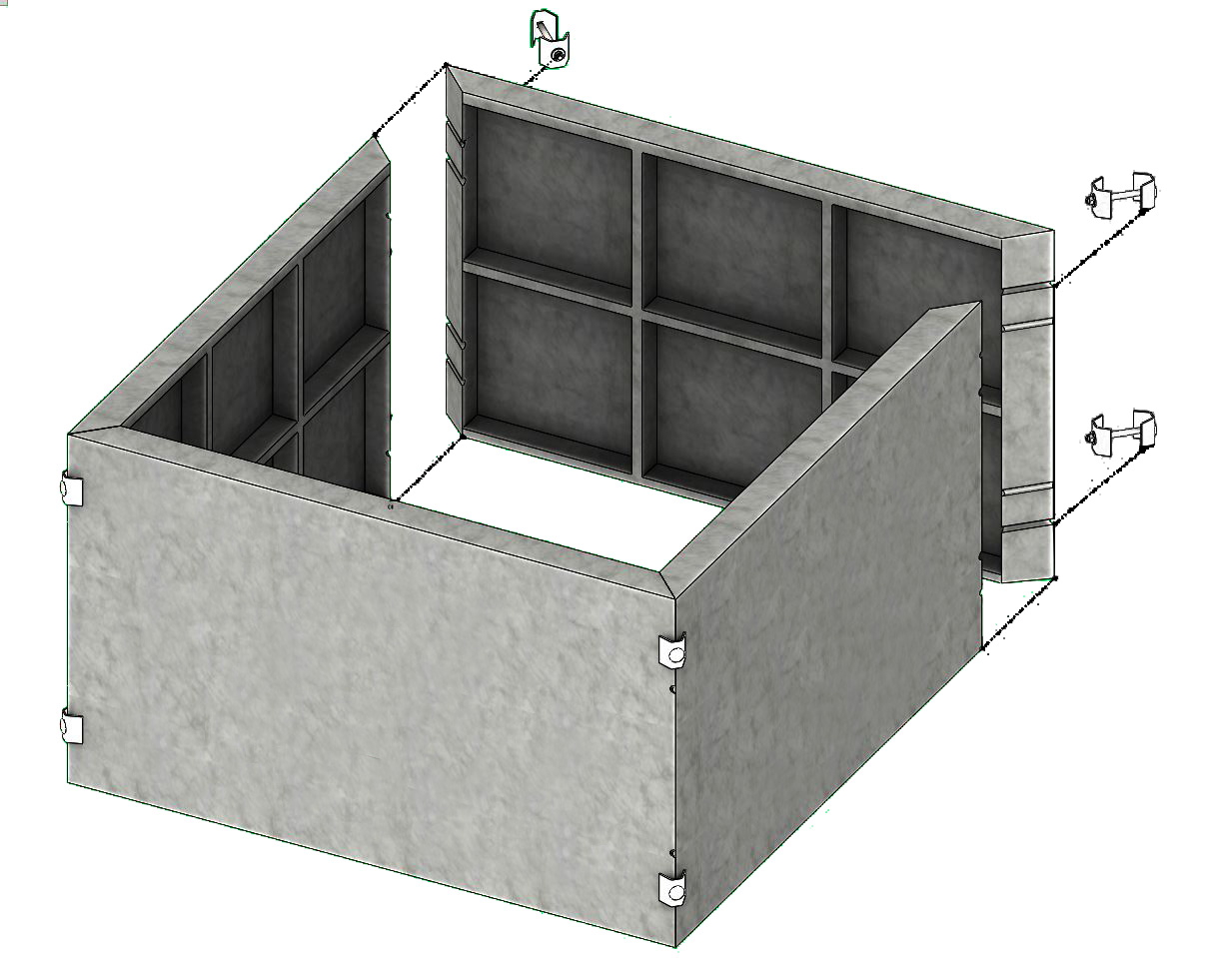

CAD generated image of an individual MGS fibercrete panel sold by Concast, Inc. CAD generated image of an individual MGS fibercrete panel sold by Concast, Inc.
photo of a small fibercrete MGS box with installed corner hardware; which comes included with every 4 panels shipped. photo of a small fibercrete MGS box with installed corner hardware; which comes included with every 4 panels shipped.
photo of a small fibercrete MGS unit in the grass with clamping hardware resting ont the top surface. photo of a small fibercrete MGS unit in the grass with clamping hardware resting ont the top surface.
photo of a pallet of fibercrete MGS panels that are ready for shipment. MGS units are shipped unassembled to reduce shipping fees. photo of a pallet of fibercrete MGS panels that are ready for shipment. MGS units are shipped unassembled to reduce shipping fees.

Link to Modular Ground Sleeve Photo AlbumMGS Photo Album

Fibercrete Modular Ground Sleeve (MGS)

Our ground sleeves provide a stable and attractive base for any utility pad mount apparatus. The long list of panel sizes creates a vast array of available box size combinations.   Fibercrete material ensures long product life via resistance to fire, corrosion, rodents, UV rays, temperature extremes, rain, and sudden impact.  Vertical shifting after install is prevented by the patented interlocking wall design.  Light-weight panels are purchased individually; a harware kit is included with every set of 4 panels.  MGS can be customized with knockouts (KO) and covers.  Ground sleeves can also be stacked  to achieve a deeper box.  Contact us with your project needs, and we'll help to identify the perfect ground sleeve for your project.

Adobe_pdf_logo MGS Specifications
Adobe_pdf_logo MGS Installation Guidelines
Adobe_pdf_logo Modular Ground Sleeve Catalog

MG Panel
Part Number		 Length Height Panel
Thickness
 Panel
Weight		 Adobe_pdf_logo
PDF File
MG-15 15 in. 26 in. 2.5 in. 37 lbs. MG-15.pdf
MG-18 18 in. 26 in. 2.5 in. 43 lbs. MG-18.pdf
MG-20 20 in. 26 in. 2.5 in. 46 lbs. MG-20.pdf
MG-22 22 in. 26 in. 2.5 in. 51 lbs. MG-22.pdf
MG-26 26 in. 26 in. 2.5 in. 59 lbs. MG-26.pdf
MG-30 30 in. 26 in. 2.5 in. 70 lbs. MG-30.pdf
MG-34 34 in. 26 in. 2.5 in. 78 lbs. MG-34.pdf
MG-36 36 in. 26 in. 2.5 in. 82 lbs. MG-36.pdf
MG-38 38 in. 26 in. 2.5 in. 86 lbs. MG-38.pdf
MG-42 42 in. 26 in. 2.5 in. 94 lbs. MG-42.pdf
MG-44 44 in. 26 in. 2.5 in. 98 lbs. MG-44.pdf
MG-48 48 in. 26 in. 2.5 in. 106 lbs. MG-48.pdf
MG-50 50 in. 26 in. 2.5 in. 113 lbs. MG-50.pdf
MG-54 54 in. 26 in. 2.5 in. 121 lbs. MG-54.pdf
MG-56 56 in. 26 in. 2.5 in. 125 lbs. MG-56.pdf
MG-60 60 in. 26 in. 2.5 in. 133 lbs. MG-60.pdf
MG-64 64 in. 26 in. 2.5 in. 147 lbs. MG-64.pdf
MG-67 67 in. 26 in. 2.5 in. 153 lbs. MG-67.pdf
MG-74 74 in. 26 in. 2.5 in. 167 lbs. MG-74.pdf
MG-78 78 in. 26 in. 2.5 in. 175 lbs. MG-78.pdf

*Opening size of the assembled MGS box is 5 inches smaller than the corrosponding outside dimension.
