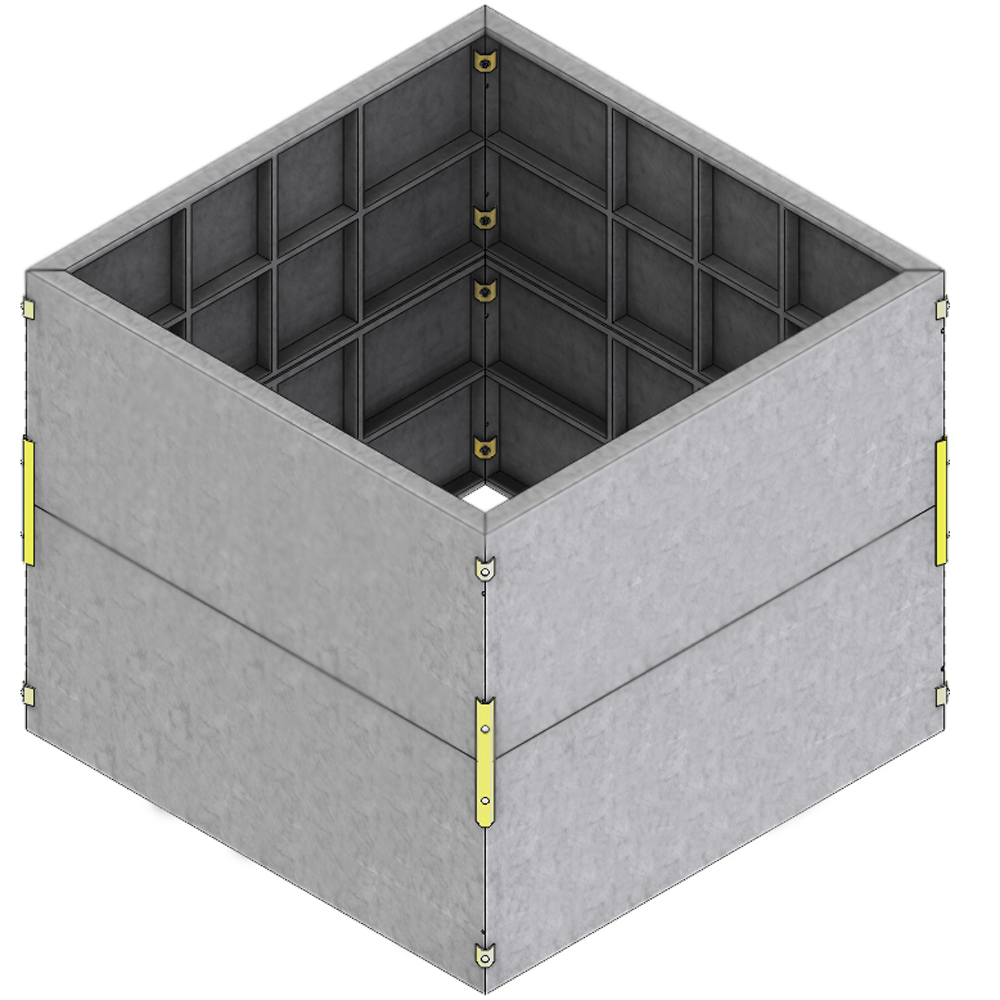

Image CAD Image link to the Corner Hardware shipped with Each Stacked MGS Unit sold by Concast, Inc.
Image Image of a stacked MGS unit being assembled
Image Close-up Photo of Outer Corner MGS Hardware sold by Concast, Inc.
Diagram Diagram depicting how Corner Hardware is Installed on MGS unit

Link to Photo Album Modular Ground Sleeve Photo Album

Stacking Option for Modular Ground Sleeves

Standard modular ground sleeve panels are 26" tall/deep. When additional depth is required, MGS units can be stacked.  Hardware kits for stacked ground sleeves are similiar to the standard kits, with the exception of the use of a modified outside corner clamp configuration to tie the stacked sleeves together.  Stacked units are also supplied with industrial adhesive/sealant that is used to seal and bond the sleeves together at the joint.

Adobe_pdf_logo MGS Specifications
Adobe_pdf_logo MGS Installation Guidelines
Adobe_pdf_logo Modular Ground Sleeve Catalog

MGS Hardware
Kit Part Number		 Description
MGS-H Standard MGS Hardware Kit
See Standard MGS Hardware Kit Page
MGS-SH Non-Standard Stacking MGS Hardware Kit
