Modular Ground Sleeve Corner Hardware

A hardware kit is included with every MGS unit.  Extra kits can be ordered separately under Concast part number MGS-H.  The corner clamps are used to assemble the panels.  C-clamps and hex-head bolts are proviced to attache equipment to the top flange edge of the MGS unit.  All hardware is yellow zinc plated, although other finishes are available. Kit Includes:

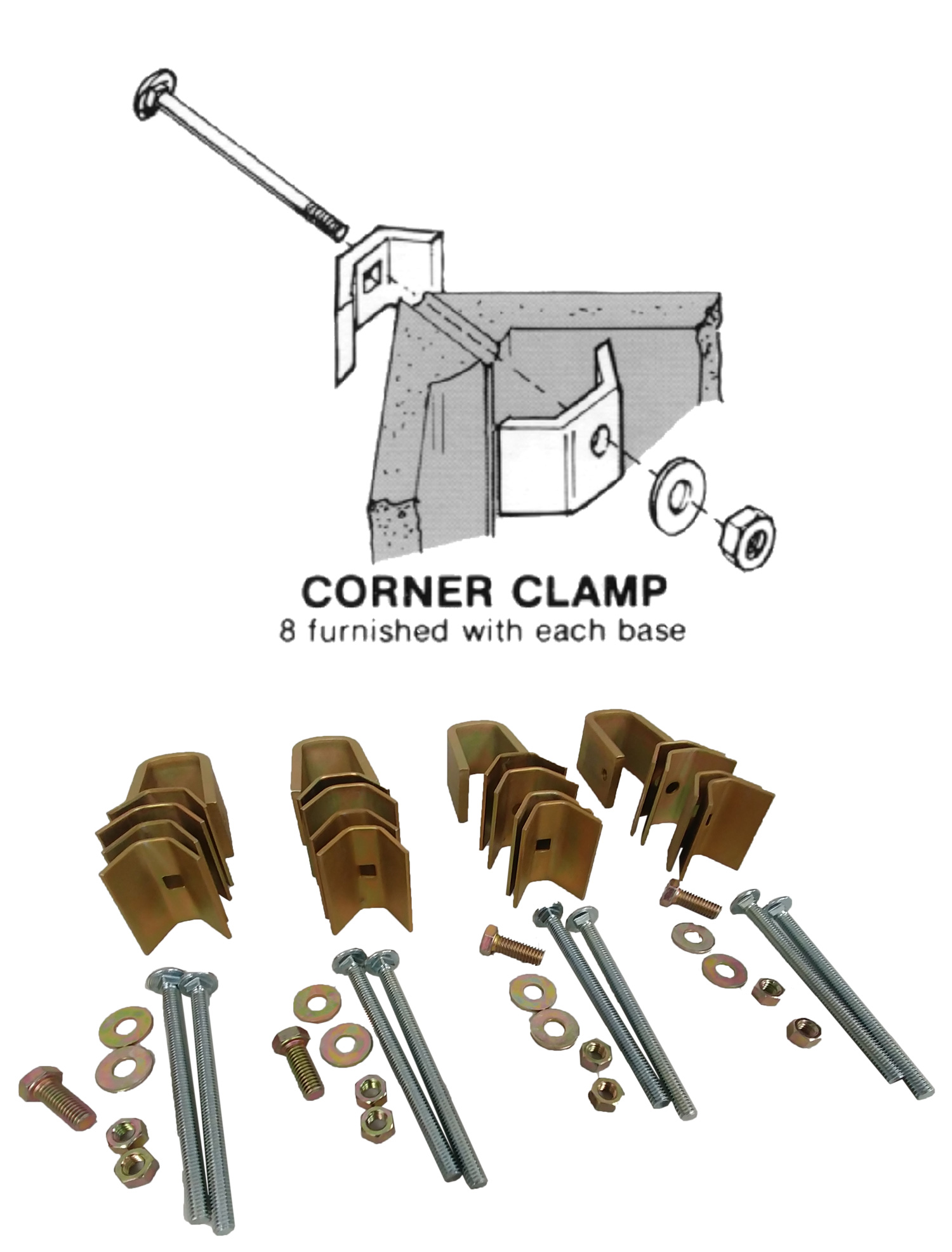

• 8 Corner Clamps consisting of
  • 1 Carraige Bolt  (5/16" Dia. x 4-1/2")
  • 1 Outside Corner Clamp
  • 1 Inside Corner Clamp
  • 1 Washer
  • 1 Hex. Nut   (5/16” Dia.)


• 4 Hold-Down Clamps consisting of
  • 1 C-Clamp
  • 1 Hex. Bolt   (3/8” x 1”)
