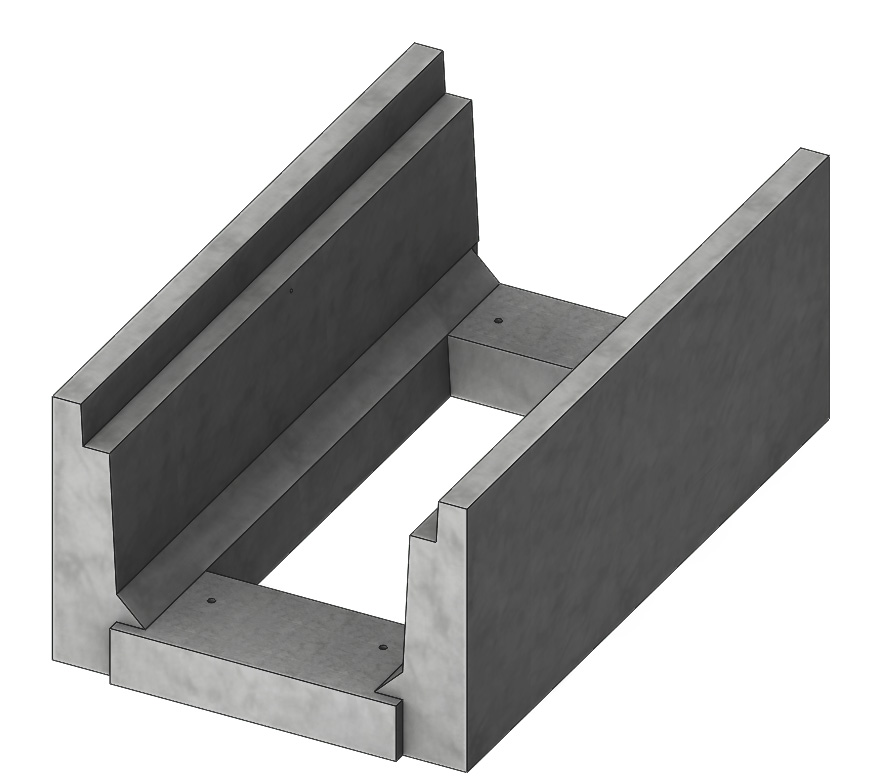

Isometric view of light traffic 12 inch deep std open bottom channel

Link to Photo AlbumLT Trench Photos

Light Traffic H-10 Rated Open Bottom 12" Depth Channel

Reinforced with steel, Concast standard concrete light traffic channel will all support a minimum of 16,000 lbs. per axle load, which is AASHTO H-10. Four 1/2 inch threaded inserts are cast into the floor of the part for safe lifting.

Open Bottom Channel  *  Used With 3 Inch Thick Covers
SG Top Rail FRP Top Rail Width X Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8010LT LTF1012 48" 10 X 12 48 8010LT
8020LT LTF2012 48" 20 X 12 48 8020LT
8024LT LTF2412 48" 24 X 12 48 8024LT
8030LT LTF3012 48" 30 X 12 48 8030LT
8040LT LTF4012 48" 50 X 12 48 8040LT
8810LT LTF1012 10 X 12 96 8810LT
8820LT LTF2012 20 X 12 96 8820LT
8824LT LTF2412 24 X 12 96 8824LT
8830LT LTF3012 30 X 12 96 8830LT
8840LT LTF4012 40 X 12 96 8840LT

Cover Options:   Fibercrete      |      Galvanized Steel     |      Concrete      |      Ventilated
