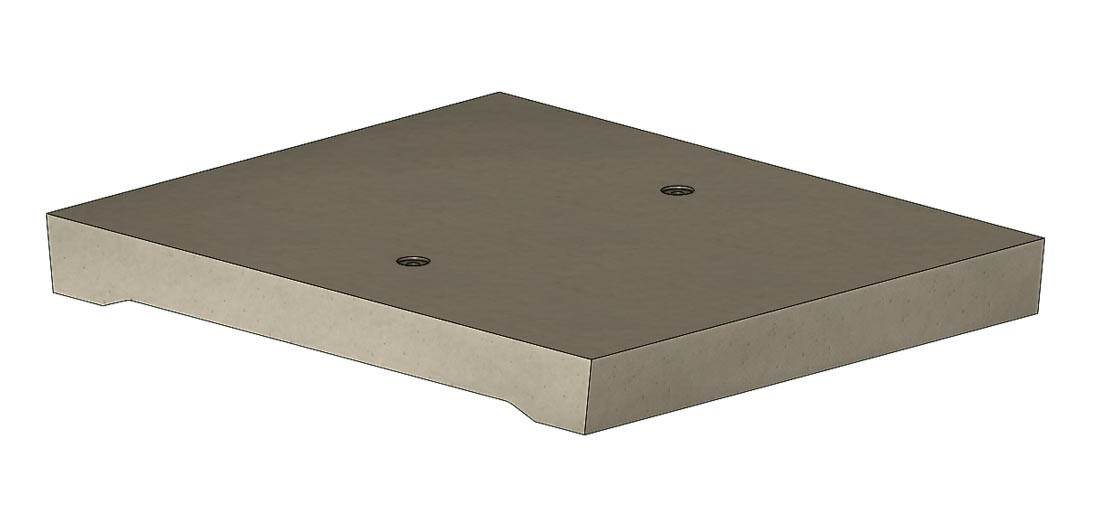

Heavy Traffic Rated Standard Polymer Concrete Covers

Concast's polymer concrete covers are a lightweight alternative to standard concrete covers.  They are designed to support heavy traffic of least 32,000 lbs/ axle load.  All covers have 1/2-13 UNC threaded inserts are cast into the top surface for lifting.  Recesses are built into the cover for optional plastic insert plugs to sit flush with the top surface.

H-20 Rated 2" Thick Covers  *  Used With HT0608 Channel
Adobe_pdf_logo HTCP06
Polymer CC Cover
Width
(Inches)
Length
(Inches)
Height
(Inches)
Weight
(Pounds)
HTCP06 8.75 24 2 28
HTCP06 48" 8.75 48 2 56


Heavy Traffic Rated 3" Thick Covers   *   Used With HT3 Channel
Adobe_pdf_logo HT3P
Polymer CC Cover
Width
(Inches)
Length
(Inches)
Height
(Inches)
Weight
(Pounds)
8011HT3P 14.88 24 3 62
8011HT3P 48" 14.88 48 3 124
8021HT3P 24.88 24 3 95
8021HT3P 48" 24.88 48 3 190
8025HT3P 28.88 24 3 124
8025HT3P 48" 28.88 48 3 248
8031HT3P 34.88 24 3 149
8031HT3P 48" 34.88 48 3 297
8041HT3P 16" 44.88 16 3 147
8041HT3P 44.88 24 3 221
8041HT3P 48" 44.88 48 3 442
