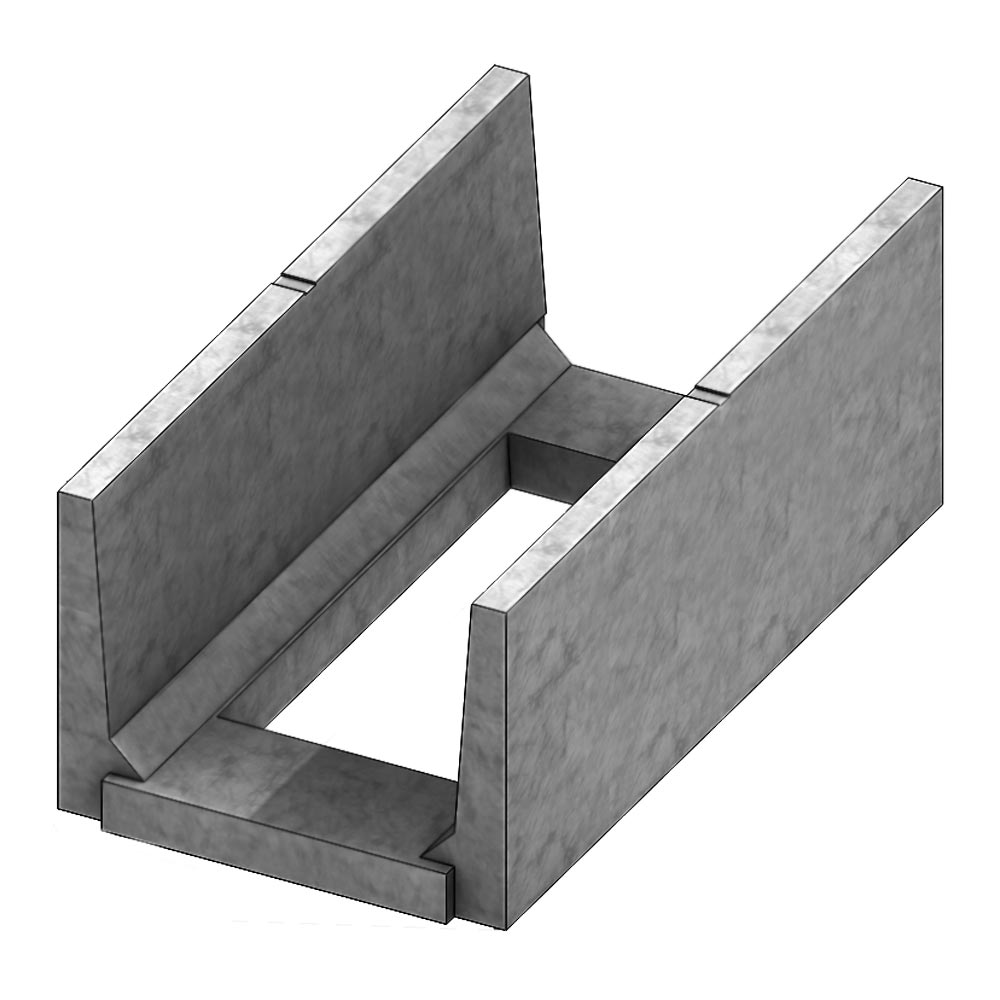

Isometric view of 16 inch deep PT pedestrian channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated Open Bottom 16" Deep Channel

All concrete PT Channels are steel reinforced, and will easily support 200 pounds per square foot to achieve their pedestrian rating.  They are available in 3 depths, including 12" & 24" deep. Ideal uses include housing for electrical cable trench and industrial pipe trench.

Channel
Open Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
802016PT 20 x 16 48 802016PT
802416PT 24 x 16 48 802416PT
803016PT 30 x 16 48 803016PT
804016PT 40 x 16 48 804016PT
805016PT 50 x 16 48 805016PT
882016PT 20 x 16 96 882016PT
882416PT 24 x 16 96 882416PT
883016PT 30 x 16 96 883016PT
884016PT 40 x 16 96 884016PT
885016PT 50 x 16 96 885016PT

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
