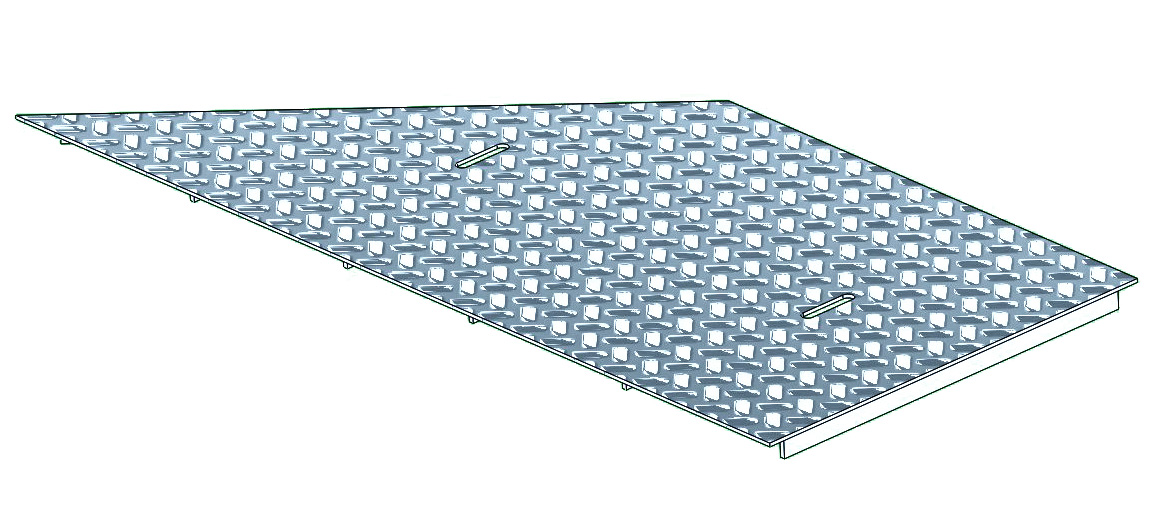

Pedestrian Rated Aluminum Corner Covers - "A" style
"A"
style covers have a 1/4" of material that will be visible above the
lip of the trench after installation. This could almost be described
as a flush cover, and are part of the standard covers that include 8011A & 8031A.
|
Aluminum A |
Rib W. (Inches) | Width & Length |
Weight (Pounds) |
---|---|---|---|
8011A 22.5L 8011A 22.5R |
10 | 12 X 48 | 13 |
8011A 45L 8011A 45R |
10 | 12 X 48 | 12 |
8021A 22.5L 8021A 22.5R |
20 | 22 X 48 | 20 |
8021A 45L 8021A 45R |
20 | 22 X 48 | 18 |
8025A 22.5L 8025A 22.5R |
24 | 26 X 24 | 13 |
8025A 45L 8025A 45R |
24 | 26 X 48 | 22 |
8031A 22.5L 8031A 22.5R |
30 | 32 X 24 | 19 |
8031A 45L 8031A 45R |
30 | 32 X 48 | 34 |
8041A 22.5L 8041A 22.5R |
40 | 42 X 48 | 53 |
8041A 45L 8041A 45R |
40 | 42 X 72 | 68 |
8051A 22.5L 8051A 22.5R |
50 | 52 X 48 | 63 |
8051A 45L 8051A 45R |
50 | 52 X 72 | 76 |
