Pedestrian Rated Ventilated Trench Covers

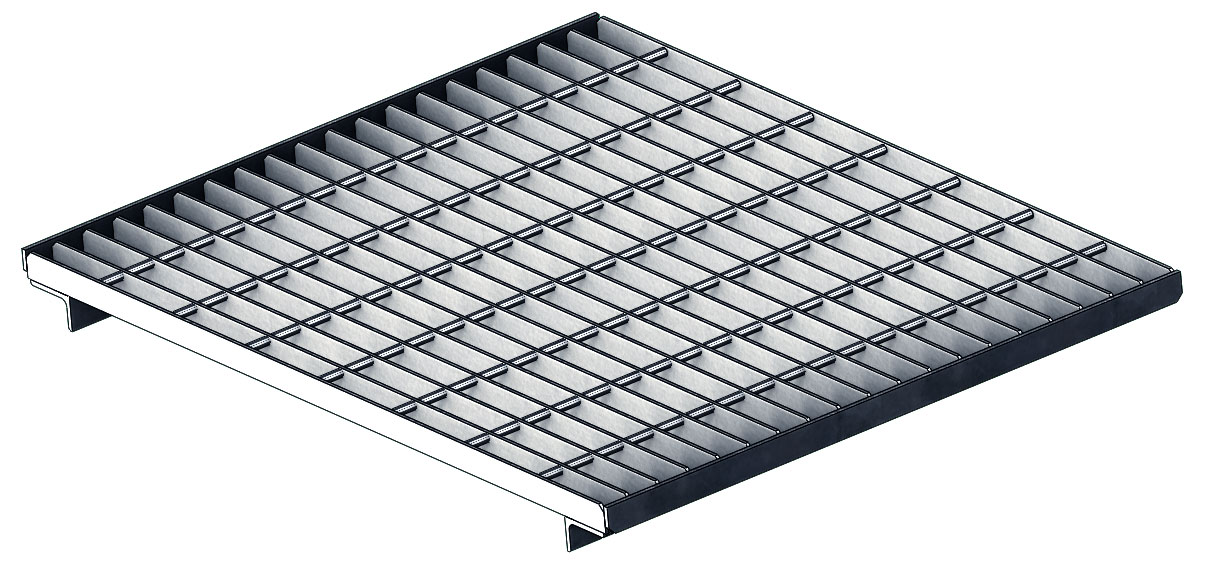

Concast's steel ventilated covers
are perfect for special pedestrian
trench runs requiring air circulation. The
cover height dimension of 1-1/4" does not include the rib thickness
or galvanizing material. These
products are designed to withstand pedestrian traffic at
200 pounds/sq. foot.
|
|
(Inches) |
& Length |
(Pounds) |
|
8011V |
9.75 |
12 X 48 |
34 |
|
8021V |
19.75 |
22 X 48 |
50 |
|
8025V |
23.75 |
26 X 24 |
28 |
|
8031V |
29.75 |
32 X 24 |
33 |
|
8041V |
39.75 |
42 X 24 |
66 |
|
8051V |
49.75 |
52 X 16 |
56 |
*Rib width corresponds to top of the channel inside
width.
