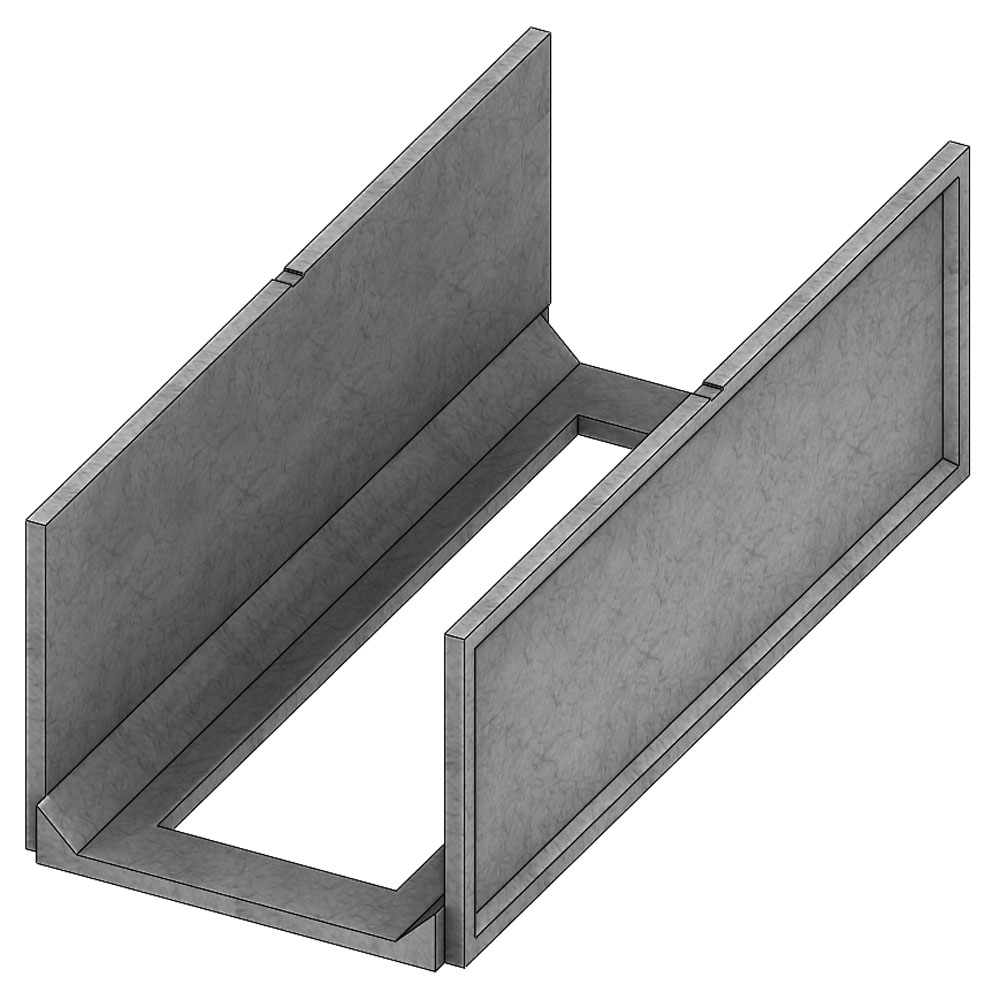

Isometric view of 16 inch deep std pedestrian channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated Open Bottom 16" Deep Flush Channel

Flush channels are designed for use where surrounding rock, asphalt, or concrete needs to be flush with the top of the covers.  Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. Ideal uses include, but are not limited to electrical cable trench and industrial pipe trench.

Channel
Open Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801016F 10 x 16 48 801016F
802016F 20 x 16 48 802016F
802416F 24 x 16 48 802416F
803016F 30 x 16 48 803016F
804016F 40 x 16 48 804016F
805016F 50 x 16 48 805016F
881016F 10 x 16 96 881016F
882016F 20 x16 96 882016F
882416F 24 x 16 96 882416F
883016F 30 x 16 96 883016F
884016F 40 x 16 96 884016F
885016F 50 x 16 96 885016F

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
