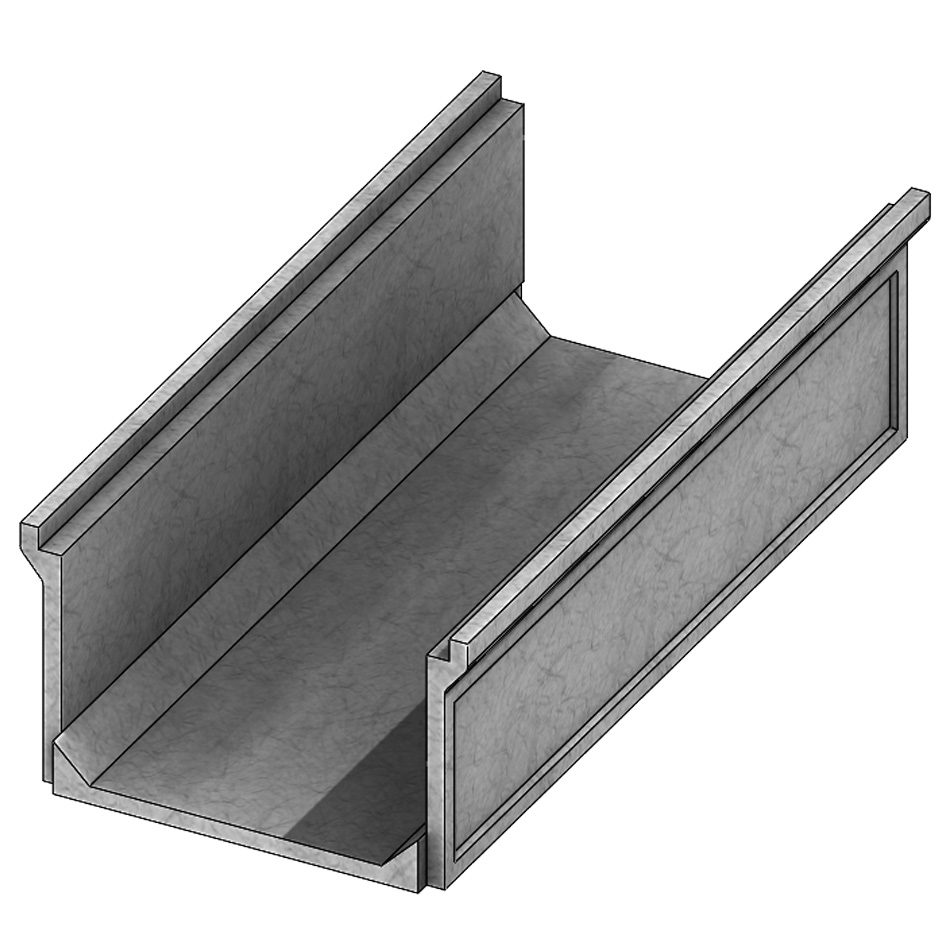

Isometric view of heavy traffic 12 inch deep std pedestrian channel

Link to the pedestrian trench photo album Ped Trench Photos

Pedestrian Rated Solid Bottom 12" Deep Flush Channel

Flush channels are designed for use where surrounding rock, asphalt, or concrete needs to be flush with the top of the covers.  Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. Ideal uses include, but are not limited to electrical cable trench and industrial pipe trench.

Channel
Open Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8010FSB 10 x 12 48 8010FSB
8020FSB 20 x 12 48 8020FSB
8024FSB 24 x 12 48 8024FSB
8030FSB 30 x 12 48 8030FSB
8040FSB 40 x 12 48 8040FSB
8050FSB 50 x 12 48 8050FSB
8810SB 10 x 12 96 8810SB
8820SB 20 x 12 96 8820SB
8824SB 24 x 12 96 8824SB
8830SB 30 x 12 96 8830SB
8840SB 40 x 12 96 8840SB
8850SB 50 x 12 96 8850SB

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
