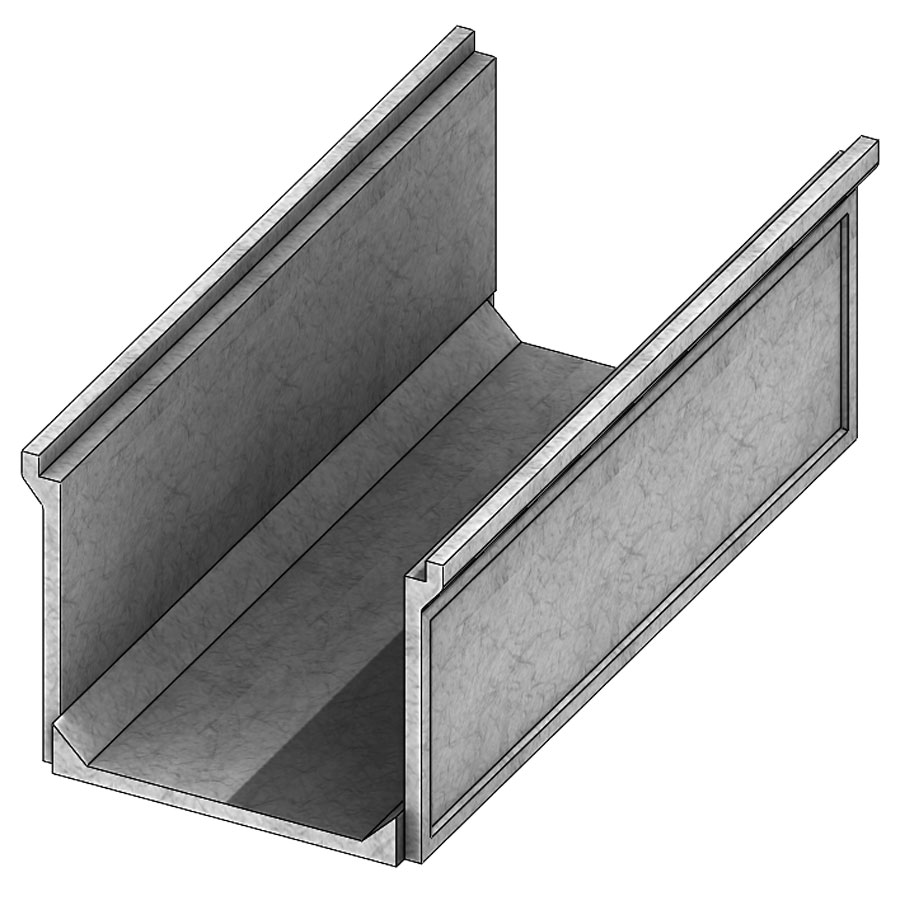

Isometric view of fibercrete pedestrian open-bottom, deep, 16 inch flush channel built by Concast, Inc. Isometric view thumbnail of Concast's pedestrian rated, open-bottom, flush trench
Channel end view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Channel end view thumbnail of Concast's pedestrian rated open-bottom trench
Channel side view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Channel side view thumbnail of Concast's pedestrian rated open-bottom trench
Channel top (aerial) view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Top aerial view thumbnail of Concast's pedestrian rated open-bottom trench


Link to Photo AlbumPedestrian Trench Photo Album

Pedestrian Rated Flush Solid-Bottom Channel

Flush channels are designed for use where surrounding rock, asphalt, or concrete needs to be flush with the top of the covers.  Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. They boast 3 times the strength of concrete; with superior crack resistance and long-term durability. Ideal uses include, but are not limited to; electrical cable trench, and industrial pipe trench. Available in 10 to 50 inch widths; 12 or 16 inch depths; and 4 or 8 foot lengths. Please note that the channels listed below are pedestrian rated only. For road rated channel, see our Light Traffic and Heavy Traffic channels.

Adobe_pdf_logo Trench Specifications
 Adobe_pdf_logo Trench Installation Guidelines
Adobe_pdf_logo Trench Catalog

Solid Bottom
Part Number		 Inside
Width		 Inside
Depth*		 Channel
Length
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
801016FSB 10 in. 16 in. 48 in. 801016FSB.pdf 801016FSB.dwg
802016FSB 20 in. 16 in. 48 in. 802016FSB.pdf 802016FSB.dwg
802416FSB 24 in. 16 in. 48 in. 802416FSB.pdf 802416FSB.dwg
803016FSB 30 in. 16 in. 48 in. 803016FSB.pdf 803016FSB.dwg
804016FSB 40 in. 16 in. 48 in. 804016FSB.pdf 804016FSB.dwg
805016FSB 50 in. 16 in. 48 in. 805016FSB.pdf 805016FSB.dwg
881016FSB 10 in. 16 in. 96 in. 881016FSB.pdf 881016FSB.dwg
882016FSB 20 in. 16 in. 96 in. 882016FSB.pdf 882016FSB.dwg
882416FSB 24 in. 16 in. 96 in. 882416FSB.pdf 882416FSB.dwg
883016FSB 30 in. 16 in. 96 in. 883016FSB.pdf 883016FSB.dwg
884016FSB 40 in. 16 in. 96 in. 884016FSB.pdf 884016FSB.dwg
885016FSB 50 in. 16 in. 96 in. 885016FSB.pdf 885016FSB.dwg
*Flush depth measurement is from the top of the trench cover to the inside floor.

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated
