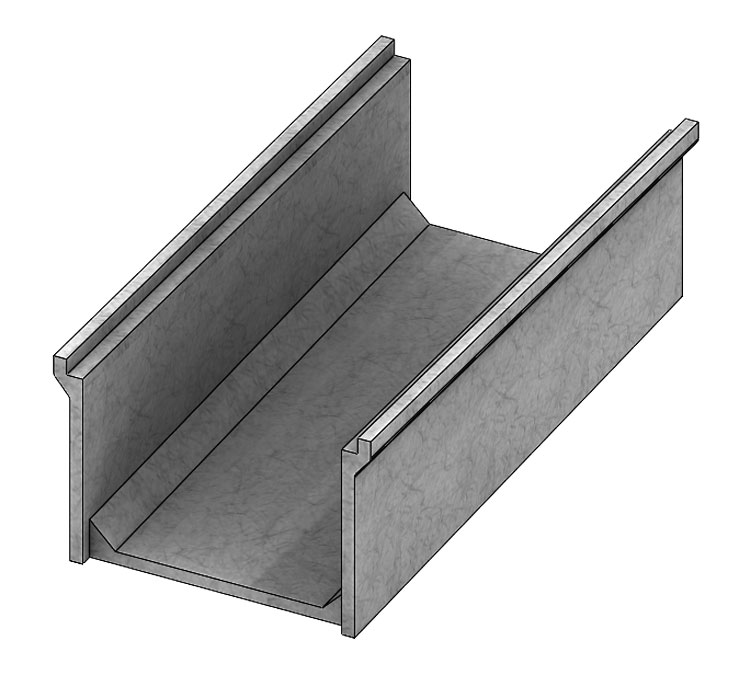

Isometric view of fibercrete flush pedestrian rated transition trench assembled into LT trench built by Concast, Inc. Isometric view thumbnail of Concast's pedestrian rated flush transition trench assembled into LT trench
End view of pedestrian rated flush transition to light traffic trench built by Concast, Inc. End view of Concast's pedestrian rated flush transition to light traffic trench
Side view of pedestrian rated flush transition to light traffic trench built by Concast, Inc. Side view of Concast's pedestrian rated flush transition to light traffic trench
Channel top(aerial) view of pedestrian rated flush transition to heavy traffic trench built by Concast, Inc. Top aerial view thumbnail of pedestrian rated flush transition to heavy traffic trench


Link to Photo AlbumPedestrian Trench Photo Album

Flush Transition Channel (Ped. to LT Channel)

These special channels are designed to facilitate a smooth transition between Concast's light traffic H10 rated channel and pedestrian rated Fibercrete®   flush channel.  These 4 foot long transition channels are available in 10, 20, 24, 30, & 40 inch widths. Please note that the channels listed below are pedestrian rated only. Also available are pedestrian transition channels that transition into Heavy Traffic H20 or H40 channels with concrete covers, and HTSG channels with galvanized steel covers.

Adobe_pdf_logo Trench Specifications
 Adobe_pdf_logo Trench Installation Guidelines
Adobe_pdf_logo Trench Catalog

12" Transition
Flush Ped. Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Light Traffic
H10 LT Channel
Inside Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
8010FRT 10 in. 12 in. 12 in. 8010FRT.pdf 8010FRT.dwg
8020FRT 20 in. 12 in. 12 in. 8020FRT.pdf 8020FRT.dwg
8024FRT 24 in. 12 in. 12 in. 8024FRT.pdf 8024FRTdwg
8030FRT 30 in. 12 in. 12 in. 8030FRT.pdf 8030FRT.dwg
8040FRT 40 in. 12 in. 12 in. 8040FRT.pdf 8040FRT.dwg


16" Transition
Flush Ped. Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Light Traffic
H10 LT Channel
Inside Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
801016FRT 10 in. 16 in. 16 in. 801016FRT.pdf 801016FRT.dwg
802016FRT 20 in. 16 in. 16 in. 802016FRT.pdf 802160FRT.dwg
802416FRT 24 in. 16 in. 16 in. 802416FRT.pdf 802416FRT.dwg
803016FRT 30 in. 16 in. 16 in. 803016FRT.pdf 803016FRT.dwg
804016FRT 40 in. 16 in. 16 in. 804016FRT.pdf 804016FRT.dwg

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated
