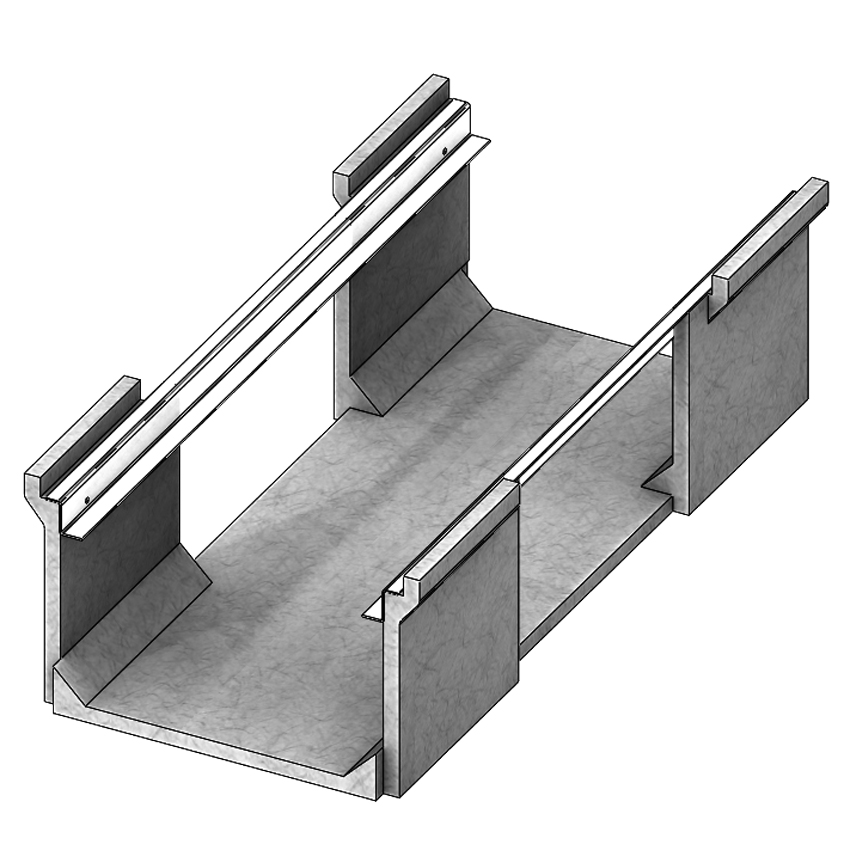

Isometric view of heavy traffic 12 inch deep pedestrian universal channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated 12" Deep Universal Channel

Flush channels are designed for use where surrounding rock, asphalt, or concrete needs to be flush with the top of covers. Universal channels are generally used wherever an ell, tee, or cross is needed in a trench run. They are shipped with removable aluminum cover supports mounted to the top ledges.

Channel
Open Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8012F (10X10) 10 x 16 48 8012F (10X10)
8022F (20X20) 20 x 16 48 8022F (20X20)
8026F (24X24) 24 x 16 48 8026F (24X24)
8032F (30X30) 30 x 16 48 8032F (30X30)
8042F (40X40) 40 x 16 48 8042F (40X40)
8852F (50X50) 50 x 16 96 8852F (50X50)

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
