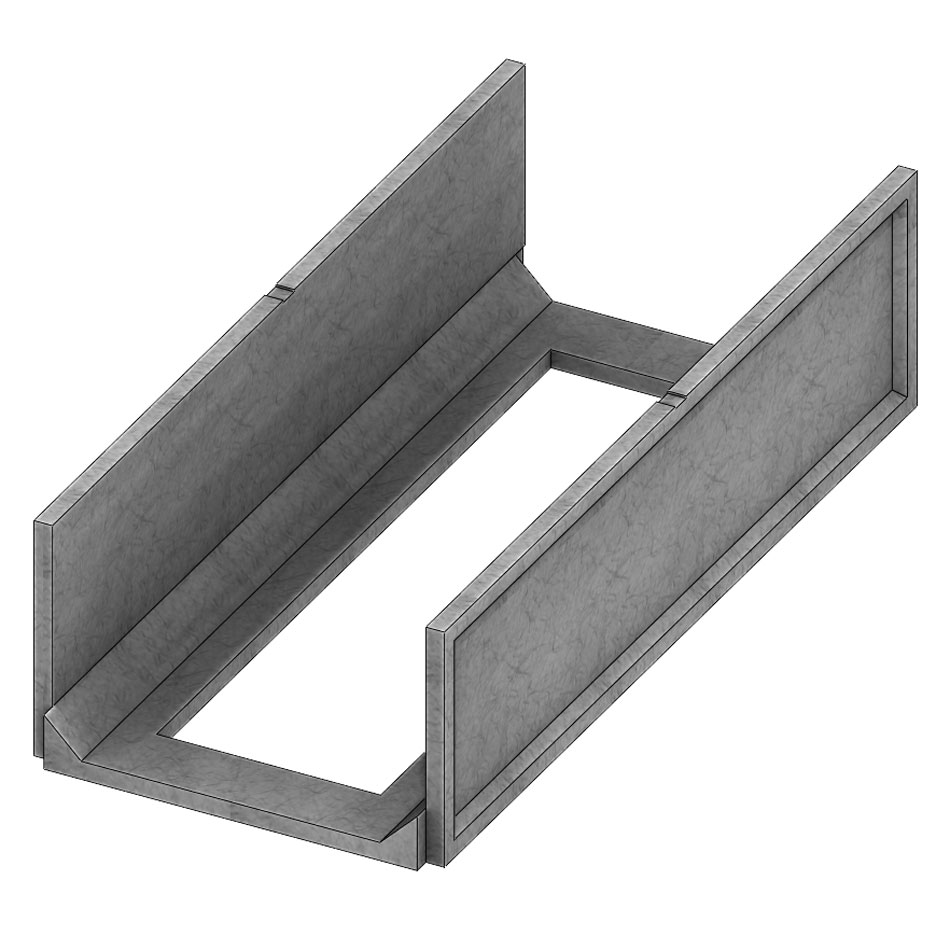

Pedestrian Rated Open Bottom 12" Deep ChannelManufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. They boast 3 times the strength of concrete; with superior crack resistance and long-term durability. Ideal uses include, but are not limited to electrical cable trench and industrial pipe trench. Also available are 16 inch deep channels in both open bottom and solid bottom, as well as flush channel
|
Channel Open Bottom |
Width x Depth Channel ID (Inches) |
Length (Inches) |
ACad Dwg Block |
---|---|---|---|
8010 | 10 x 12 | 48 | 8010 |
8020 | 20 x 12 | 48 | 8020 |
8024 | 24 x 12 | 48 | 8024 |
8030 | 30 x 12 | 48 | 8030 |
8040 | 40 x 12 | 48 | 8040 |
8050 | 50 x 12 | 48 | 8050 |
8810 | 10 12 | 96 | 8810 |
8820 | 20 x 12 | 96 | 8820 |
8824 | 24 x 12 | 96 | 8824 |
8830 | 30 x 12 | 96 | 8830 |
8840 | 40 x 12 | 96 | 8840 |
8850 | 50 x 12 | 96 | 8850 |
