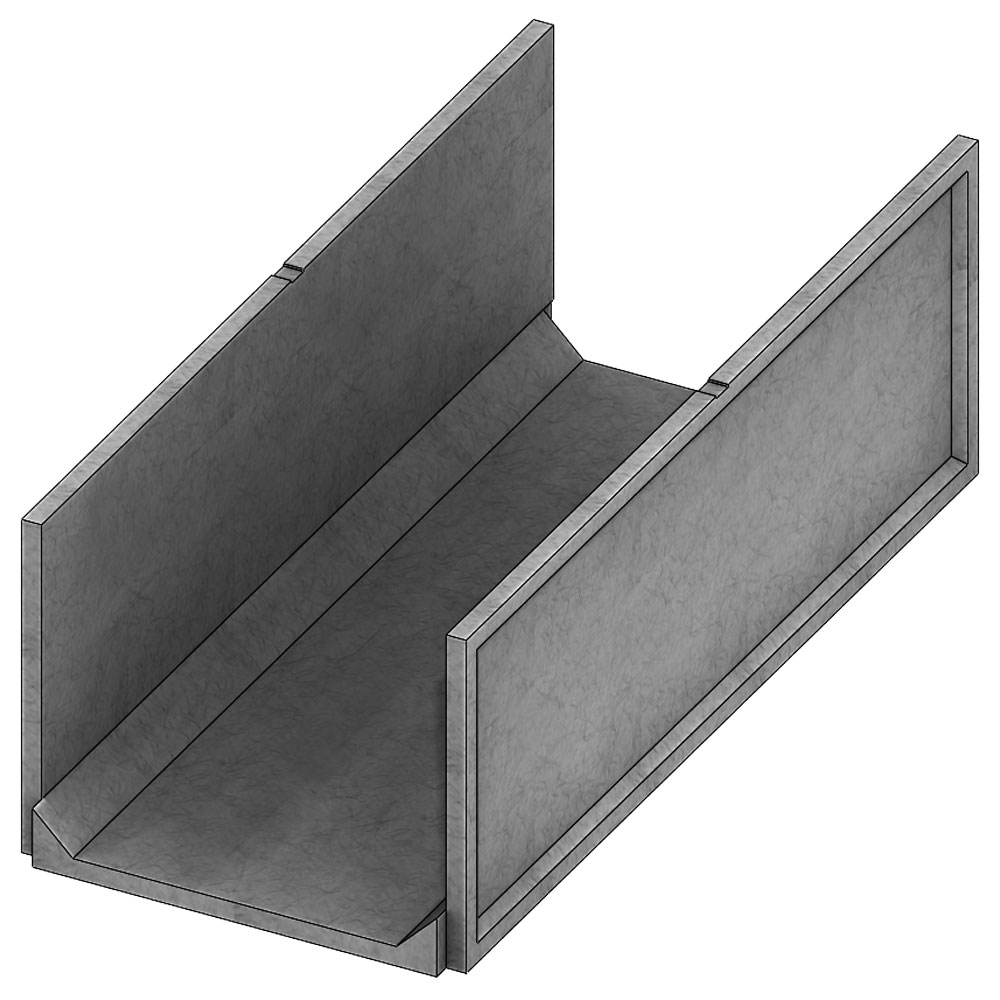

Isometric view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Isometric view thumbnail of Concast's pedestrian rated open-bottom trench
Channel end view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Channel end view thumbnail of Concast's pedestrian rated open-bottom trench
Channel side view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Channel side view thumbnail of Concast's pedestrian rated open-bottom trench
Channel top (aerial) view of fibercrete pedestrian open-bottom, deep 16 inch deep channel built by Concast, Inc. Top aerial view thumbnail of Concast's pedestrian rated open-bottom trench


Link to Photo AlbumPedestrian Trench Photo Album

Pedestrian Rated Solid-Bottom Channel

Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. They boast 3 times the strength of concrete; with superior crack resistance and long-term durability. Ideal uses include, but are not limited to; electrical cable trench, and industrial pipe trench. Available in 10 to 50 inch widths; 12 or 16 inch depths; and 4 or 8 foot lengths. Please note that the channels listed below are pedestrian rated only. For road rated channel, see our Light Traffic and Heavy Traffic channels.

Adobe_pdf_logo Trench Specifications
 Adobe_pdf_logo Trench Installation Guidelines
Adobe_pdf_logo Trench Catalog

Solid Bottom
Part Number		 Inside
Width		 Inside
Depth		 Channel
Length
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
801016SB 10 in. 16 in. 48 in. 801016SB.pdf 801016SB.dwg
802016SB 20 in. 16 in. 48 in. 802016SB.pdf 802016SB.dwg
802416SB 24 in. 16 in. 48 in. 802416SB.pdf 802416SB.dwg
803016SB 30 in. 16 in. 48 in. 803016SB.pdf 803016SB.dwg
804016SB 40 in. 16 in. 48 in. 804016SB.pdf 804016SB.dwg
805016SB 50 in. 16 in. 48 in. 805016SB.pdf 805016SB.dwg
881016SB 10 in. 16 in. 96 in. 881016SB.pdf 881016SB.dwg
882016SB 20 in. 16 in. 96 in. 882016SB.pdf 882016SB.dwg
8824S16B 24 in. 16 in. 96 in. 882416SB.pdf 882416SB.dwg
883016SB 30 in. 16 in. 96 in. 883016SB.pdf 883016SB.dwg
884016SB 40 in. 16 in. 96 in. 884016SB.pdf 884016SB.dwg
885016SB 50 in. 16 in. 96 in. 885016SB.pdf 885016SB.dwg

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated
