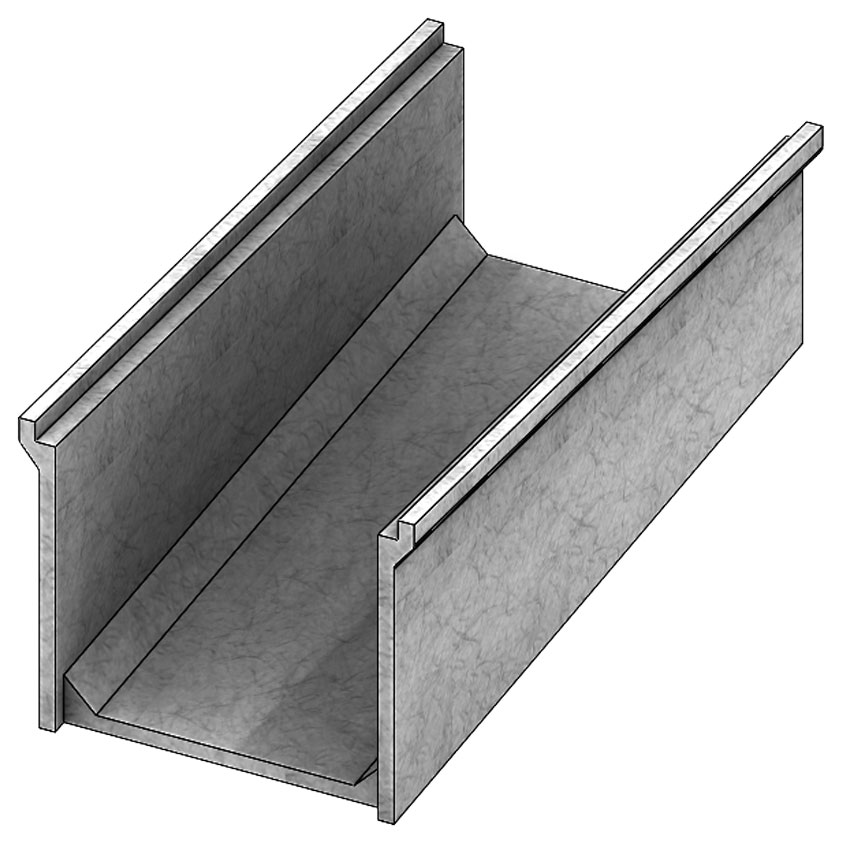

Isometric view of fibercrete pedestrian rated transition trench assembled into HT trench built by Concast, Inc. Isometric view thumbnail of Concast's pedestrian rated transition trench assembled into HT trench
End view of pedestrian rated transition to heavy traffic trench built by Concast, Inc. End view of Concast's pedestrian rated transition to heavy traffic trench
Side view of pedestrian rated transition to heavy traffic trench built by Concast, Inc. Side view of Concast's pedestrian rated transition to heavy traffic trench
Channel top(aerial) view of pedestrian rated transition to heavy traffic trench built by Concast, Inc. Top aerial view thumbnail of pedestrian rated transition to heavy traffic trench


Link to Photo AlbumPedestrian Trench Photo Album

Pedestrian Transition Channel (Ped. to HT Channel)

These special channels are designed to facilitate a smooth transition between Concast's standard heavy traffic channel and pedestrian rated Fibercrete®  channel.  These 4 foot long transition channels are available in 10 to 50 inch standard widths. Please note that the channels listed below are pedestrian rated only. Also available are pedestrian transition channels that transition into Light Traffic H10 channels and HTSG channels.

Adobe_pdf_logo Trench Specifications
 Adobe_pdf_logo Trench Installation Guidelines
Adobe_pdf_logo Trench Catalog

12" Transition
Pedestrian Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Heavy Traffic
Channel
Inside Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
8010SRT 10 in. 12 in. 12 in. 8010SRT.pdf 8010SRT.dwg
8020SRT 20 in. 12 in. 12 in. 8020SRT.pdf 8020SRT.dwg
8024SRT 24 in. 12 in. 12 in. 8024SRT.pdf 8024SRTdwg
8030SRT 30 in. 12 in. 12 in. 8030SRT.pdf 8030SRT.dwg
8040SRT 40 in. 12 in. 12 in. 8040SRT.pdf 8040SRT.dwg
8050SRT 30 in. 12 in. 12 in. 8050SRT.pdf 8050SRT.dwg


16" Transition
Pedestrian Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Heavy Traffic
Channel
Inside Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
801016DRT 10 in. 16 in. 16 in. 801016DRT.pdf 801016DRT.dwg
802016DRT 20 in. 16 in. 16 in. 802016DRT.pdf 802160DRT.dwg
802416DRT 24 in. 16 in. 16 in. 802416DRT.pdf 802416DRT.dwg
803016DRT 30 in. 16 in. 16 in. 803016DRT.pdf 803016DRT.dwg
804016DRT 40 in. 16 in. 16 in. 804016DRT.pdf 804016DRT.dwg
805016DRT 50 in. 16 in. 16 in. 805016DRT.pdf 805016DRT.dwg
