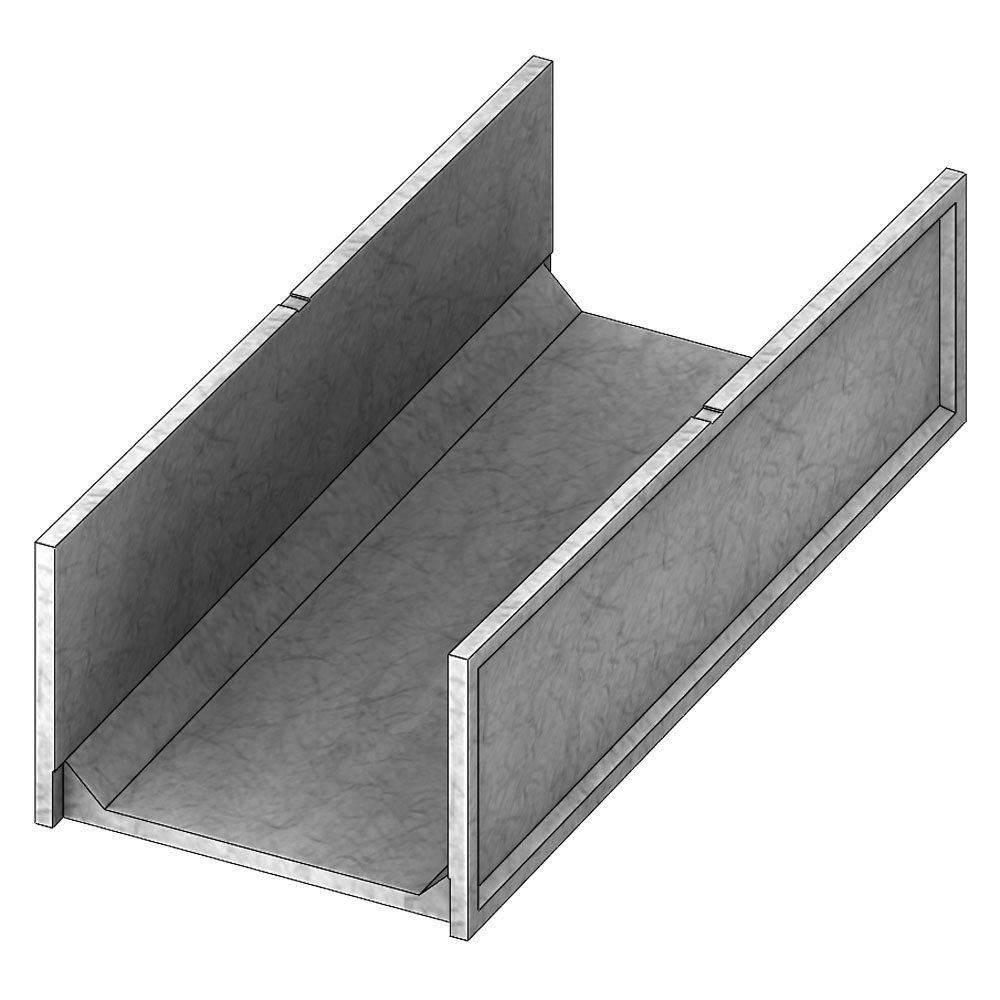

Isometric view of assembled fibercrete pedestrian transition between pedestrian and LT trench systems Isometric view of assembled fibercrete pedestrian transition between pedestrian and LT trench systems
End view of Concast's pedestrian rated transition to LT trench built by Concast, Inc. End view of Concast's pedestrian rated transition to LT trench
Side view of Concast's pedestrian rated transition to LT trench built by Concast, Inc. Side view of Concast's pedestrian rated transition to LT trench
Top aerial view of Concast's pedestrian rated transition to LT trench built by Concast, Inc. Top aerial view of Concast's pedestrian rated transition to LT trench


Link to Photo AlbumPedestrian Trench Photo Album

Pedestrian Transition Channel (Ped. to LT Channel)

These special channels are designed to facilitate a smooth transition between Concast's standard light traffic H10 rated channel and their pedestrian rated Fibercrete®  channel. These 4 foot long transition channels are available in 10, 20, 24, 30, & 40 inch widths. Please note that the channels listed below are pedestrian rated only. Also available are pedestrian transition channels that transition into Heavy Traffic H20 or H40 channels with concrete covers, and HTSG channels with galvanized steel covers.

Adobe_pdf_logo Trench Specifications
 Adobe_pdf_logo Trench Installation Guidelines
Adobe_pdf_logo Trench Catalog

12" Transition
Pedestrian Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Light Traffic
Channel
Inside
Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
8010RT 10 in. 12 in. 12 in. 8010RT.pdf 8010RT.dwg
8020RT 20 in. 12 in. 12 in. 8020RT.pdf 8020RT.dwg
8024RT 24 in. 12 in. 12 in. 8024RT.pdf 8024RTdwg
8030RT 30 in. 12 in. 12 in. 8030RT.pdf 8030RT.dwg
8040RT 40 in. 12 in. 12 in. 8040RT.pdf 8040RT.dwg


16" Transition
Pedestrian Channel
Part Number		 Inside
Width		 Ped.
Channel
Inside
Depth		 Light Traffic
H10 Channel
Inside Depth
 Adobe_pdf_logo
PDF File
 AutoCAD_DWG_logo
AutoCad Block
801016RT 10 in. 16 in. 16 in. 801016RT.pdf 801016RT.dwg
802016RT 20 in. 16 in. 16 in. 802016RT.pdf 802160RT.dwg
802416RT 24 in. 16 in. 16 in. 802416RT.pdf 802416RT.dwg
803016RT 30 in. 16 in. 16 in. 803016RT.pdf 803016RT.dwg
804016RT 40 in. 16 in. 16 in. 804016RT.pdf 804016RT.dwg

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated
