Pedestrian Rated Universal Channel
Manufactured with Fibercrete®,
our pedestrian channels are lighter than conventional concrete.
They boast 3 times the strength of concrete; with superior
crack resistance and long-term durability. Ideal uses include,
but are not limited to; electrical cable trench, and industrial
pipe trench. Available in 10 to 50 inch widths;
12 or 16 inch depths; and 4 or 8 foot lengths. Our universal
channels are shipped with removable aluminum cover supports
mounted to the top ledges. Please note
that the channels listed below are pedestrian rated only.
For road rated channel, see our Light
Traffic and Heavy
Traffic channels. |
| Universal Part Number |
Inside Width |
Inside Depth |
Channel Length |
PDF File |
 AutoCad Block |
|---|---|---|---|---|---|
| 801216 (10X10) | 10 in. | 16 in. | 48 in. | 801216 (10X10).pdf | 801216 (10X10).dwg |

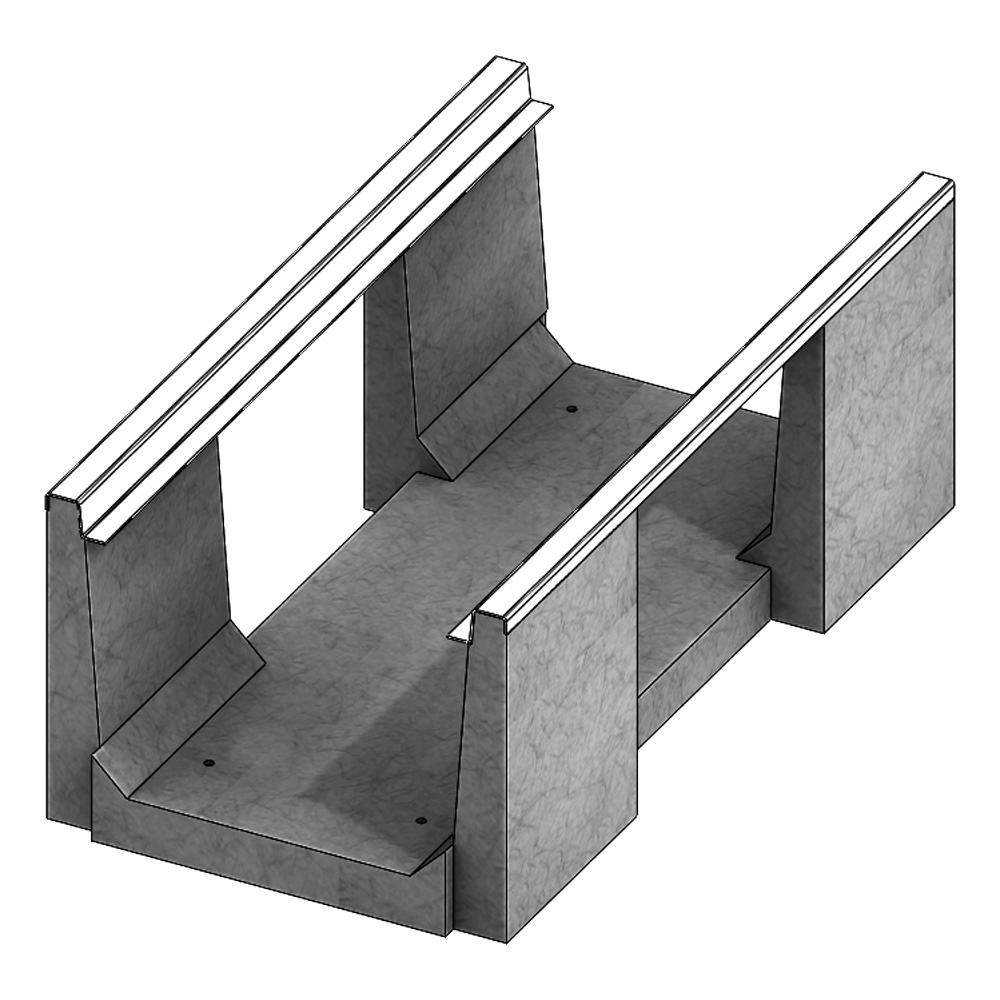

| 802216 (20X20) | 20 in. | 16 in. | 48 in. | 802216 (20X20).pdf | 802216 (20X20).dwg |
| 802616 (24X24) | 24 in. | 16 in. | 48 in. | 802616 (24X24).pdf | 802616 (24X24).dwg |
| 803216 (30X30) | 30 in. | 16 in. | 48 in. | 803216 (30X30).pdf | 803216 (30X30).dwg |
| 804216 (40X40) | 40 in. | 16 in. | 48 in. | 804216 (40X40).pdf | 804216 (40X40).dwg |
| 885216 (50X50) | 50 in. | 16 in. | 96 in. | 885216 (50X50).pdf | 885216 (50X50).dwg |
Cover Options: Fibercrete |
Steel
Galvanized |
Aluminum |
Ventilated
 |
