Modular Ground Sleeve Corner Hardware

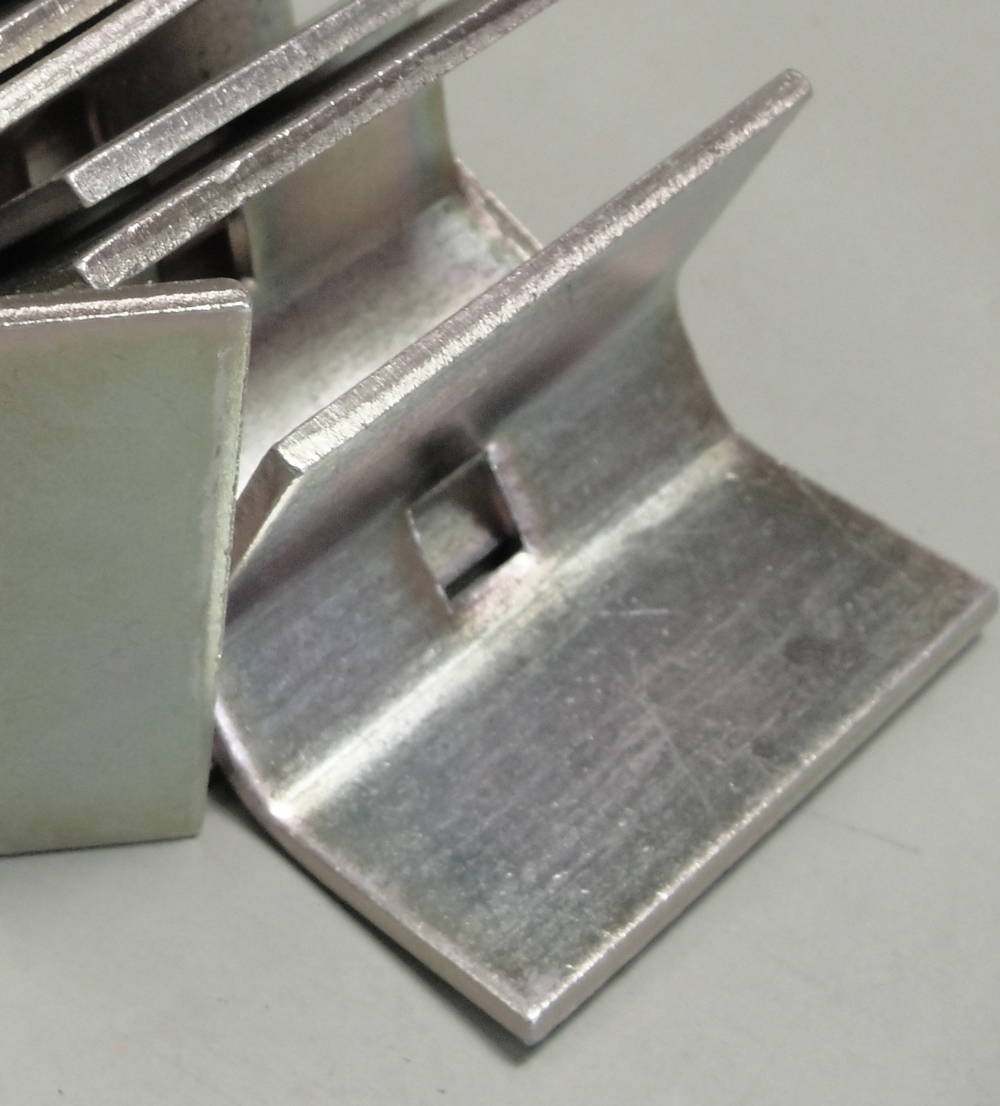

A hardware kit bag is always shipped with every MGS unit, although extra kits can be ordered separately.  The corner clamps are used to assemble the panels.  C-clamps and hex-head bolts are included in the kit so that equipment can be attached to the top flange edge of the MGS unit.  All hardware is yellow zinc plated, although other finishes are available.

Kit Includes:

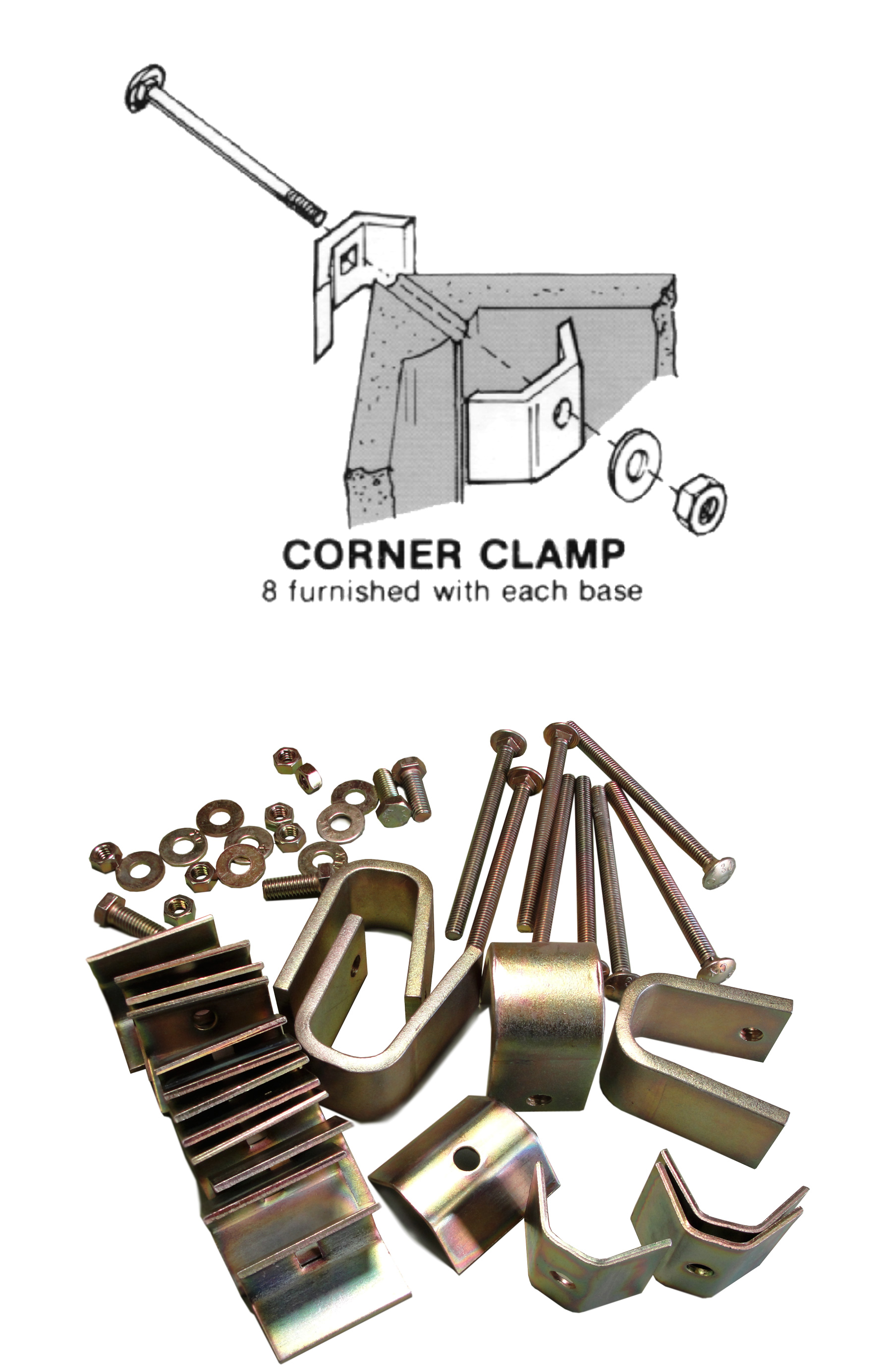

• 8 Corner Clamps consisting of

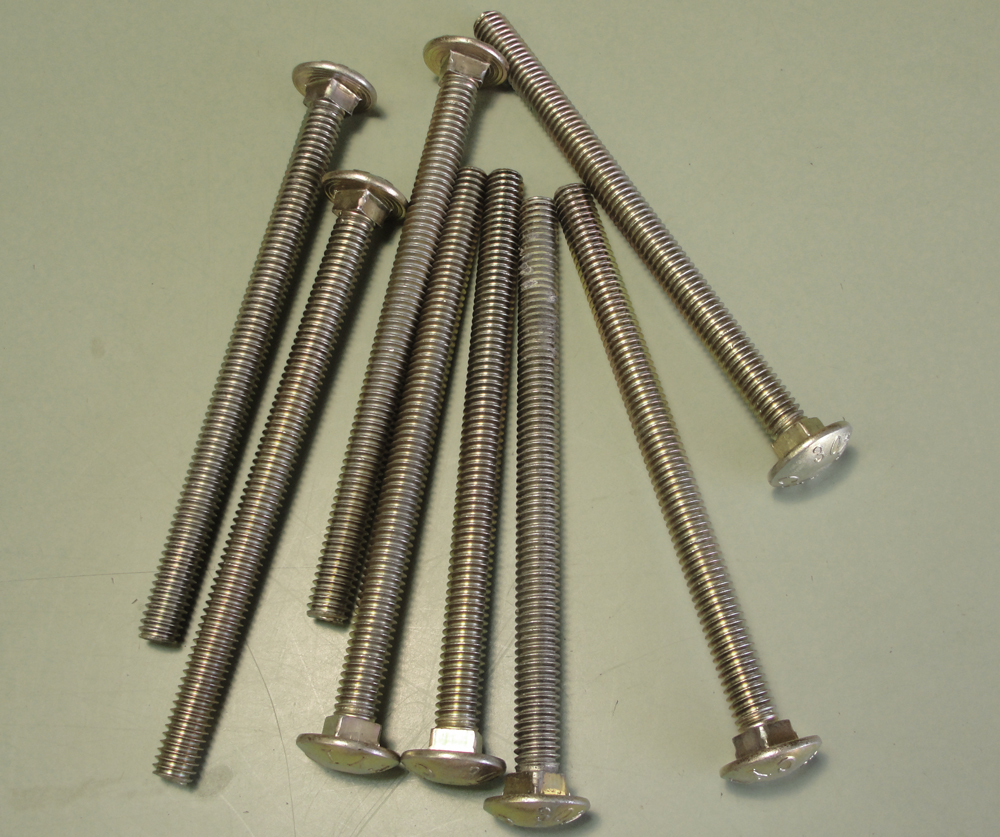

  • 1 Carraige Bolt  (5/16" Dia. x 4-1/2")

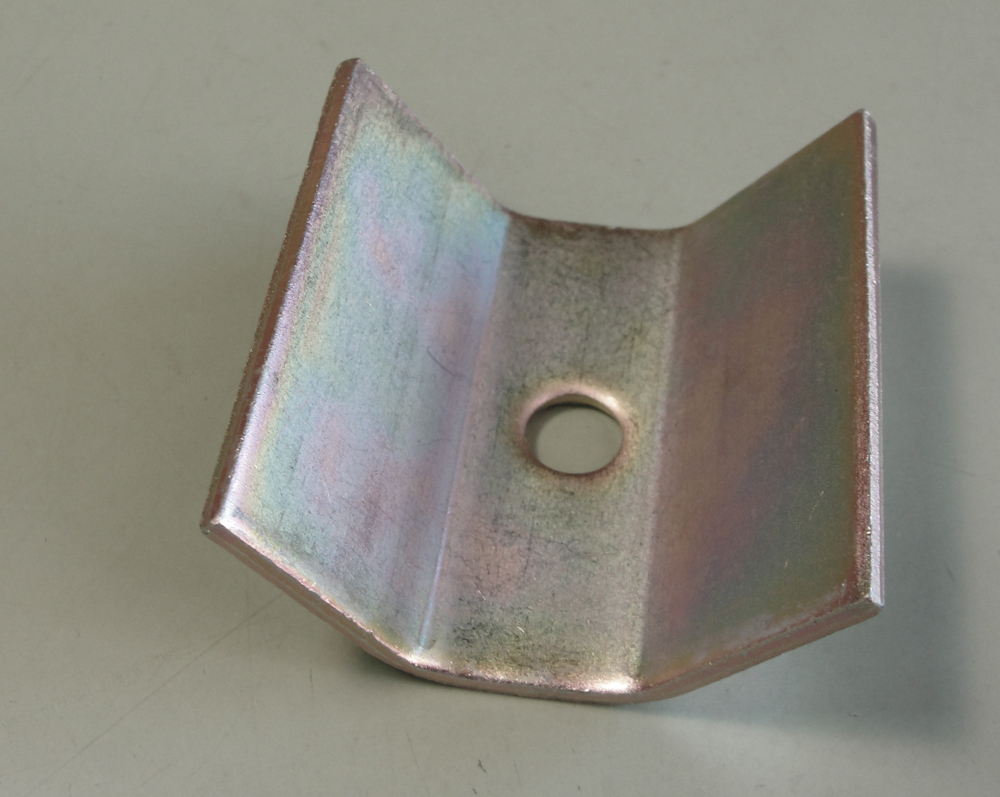

  • 1 Outside Corner Clamp
  • 1 Inside Corner Clamp
  • 1 Washer
  • 1 Hex. Nut   (5/16” Dia.)


• 4 Hold-Down Clamps consisting of

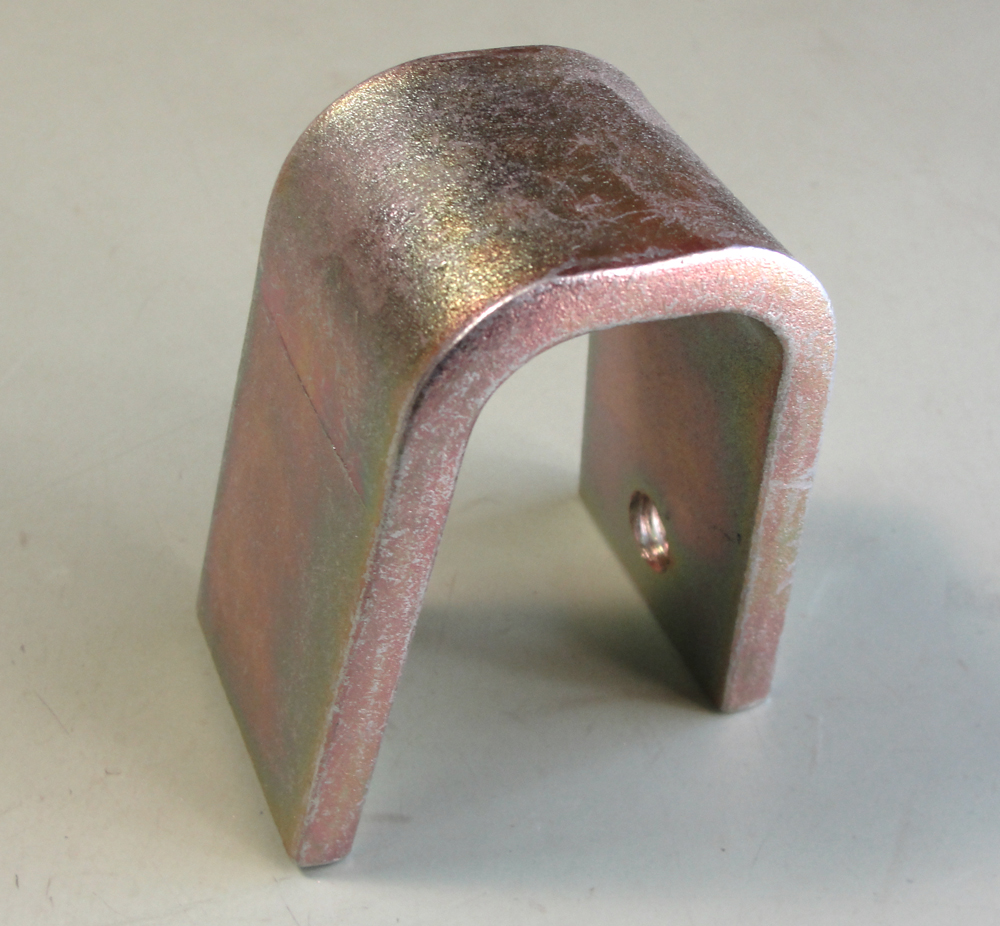

  • 1 C-Clamp

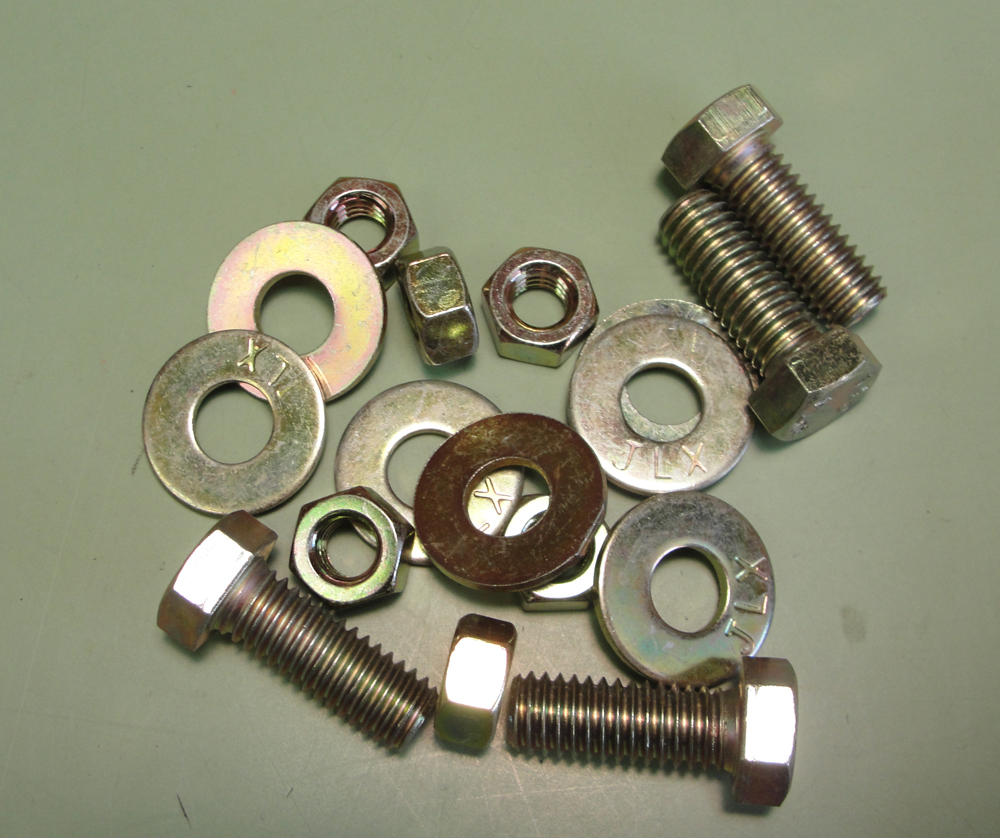

  • 1 Hex. Bolt   (3/8” x 1”)
