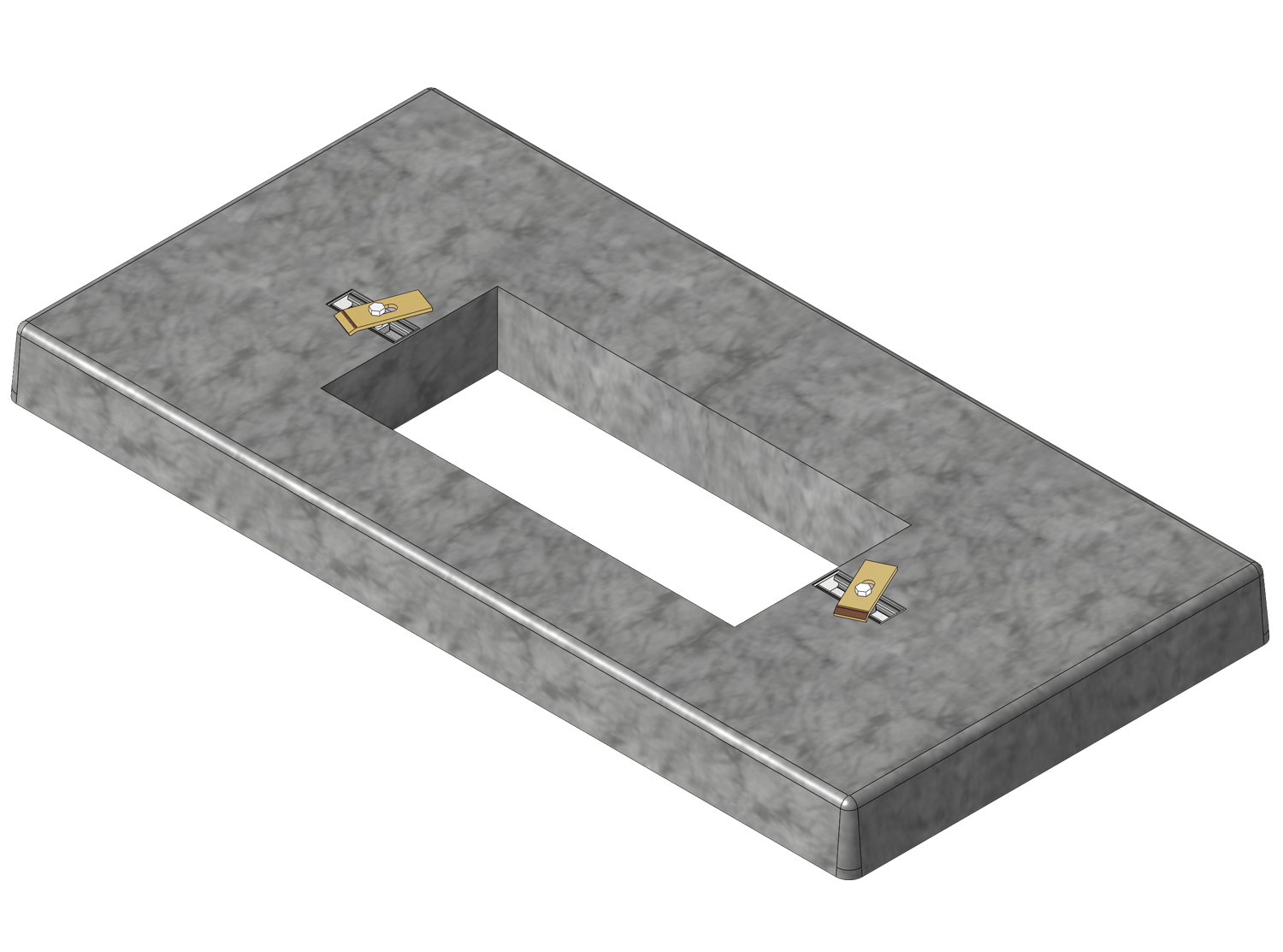

CAD generated image of the bottom isometric view of a fibercrete flat pad sold by Concast, Inc. CAD generated image of the bottom isometric view of a fibercrete flat pad sold by Concast, Inc.
Photo of a fibercrete flat pad being installed with a transformer. Photo of a fibercrete flat pad being installed with a transformer.
Photo of a fibercrete flat pad installed with a transformer. Photo of a fibercrete flat pad installed with a transformer.
Photo of flat pad hardware - specifically a hold-down clamp installed into cast-in unistrut. Photo of flat pad hardware - specifically a hold-down clamp installed into cast-in unistrut.

Link to Flat Pad Photo AlbumFlat Pad Photo Album

Standard "Solid Bottom" & "Solid" Flat Pads

There are numerous Fibercrete® flat pad sizes available to support transformers and other heavy electrical equipment.  We offer both our more economical solid concrete pads; as well as our lighter, foam-core, solid bottom pads.  Wet soil condition installations are a frequent application for these pads.  They are also ideal where a greater bearing surface is required.    The list below is a small compiliation of some of our most frequently ordered pads, but many other sizes and opening configurations are available upon request.  Concast's complete line of fibercrete and concrete flat pads can be built as split pads for easy pad replacement. Any of these pads can be ordered lightweight, or with a waffled bottom too.  We offer other customization options including clamps, toggle nuts, threaded inserts, and unistrut.

Adobe_pdf_logo Flat Pad Specifications
 Adobe_pdf_logo Flat Pad Installation Guidelines
 Adobe_pdf_logo Flat Pad Catalog
Adobe_pdf_logo Flat Pad Generic Drawing for Mark-Up

Solid Pad
Part Number		 Pad
Length		 Pad
Width		 Pad
Height		 Pad
Opening
Size		 Pad
Weight		 Adobe_pdf_logo
PDF File
FPS-26-52-4-1126(6) 26 in. 52 in. 4 in. 11 x 25.75 364 Lbs. FPS-26-52-4-1126(6).pdf
FPS-30-30-3-1016(6) 30 in. 30 in. 3 in. 10 x 16 -- Lbs.
FPS-36-72-4-1248(6) 36 in. 72 in. 4 in. 12 x 48 687 Lbs. FPS-36-72-4-1248(6).pdf
FPS-36-72-4-2412(6) 36 in. 72 in. 4 in. 12 x 24 777 Lbs. FPS-36-72-4-2412(6).pdf
FPS-38-42-3.25-2012(7.5) 42 in. 38 in. 3.25 in. 12 x 20 -- Lbs.
FPS-40-40-3.5-1225(6) 40 in. 40 in. 3.5 in. 12 x 25 -- Lbs.
FPS-42-42-4-1326(5) 42 in. 42 in. 4 in. 13 x 25.75 480 Lbs. FPS-42-42-4-1326(5).pdf
FPS-42-45-4-2512(6) 45 in. 42 in. 4 in. 12 x 25 -- Lbs.
FPS-42-48-4-2612(4) 48 in. 42 in. 4 in. 12 x 26 -- Lbs.
FPS-42-48-4-2626(4) 48 in. 42 in. 4 in. 26 x 26 -- Lbs.
FPS-44-48-4-2424(8) 48 in. 44 in. 4 in. 24 x 24 -- Lbs.
FPS-46-46-4-1228(7) 46 in. 46 in. 4 in. 12 x 28 604 Lbs. FPS-46-46-4-1228(7).pdf
FPS-48-48-4-1227(8) 48 in. 48 in. 4 in. 12 x 27 -- Lbs.
FPS-48-54-4-1225(6) 48 in. 54 in. 4 in. 12 x 25 -- Lbs.
FPS-58-70-5-1646(12) 58 in. 70 in. 5 in. 16 x 46 1405 Lbs. FPS-58-70-5-1646(12).pdf
FPS-60-84-5-1548(6) 60 in. 84 in. 5 in. 15 x 48 -- Lbs.
FPS-65-72-4-1649(6) 65 in. 72 in. 4 in. 16 x 49 1308 Lbs. FPS-65-72-4-1649(6).pdf
FPS-72-84-5-2052(10) 72 in. 84 in. 5 in. 20 x 52 2107 Lbs. FPS-72-84-5-2052(10).pdf
FPS-83-88-5-LLWW(X)* 83 in. 88 in. 5 in. LLWW -- Lbs. FPS-83-88-5-LLWW(X).pdf
FPS-83-94-5-LLWW(X)* 83 in. 94 in. 5 in. LLWW -- Lbs. FPS-83-94-5-LLWW(X).pdf
FPS-92-96-8-LLWW(X)* 92 in. 96 in. 8 in. LLWW -- Lbs. FPS-92-96-8-LLWW(X).pdf
FPS-100-100-5-2068(10) 99.5 in. 99.5 in. 5 in. 20 x 68 3531 Lbs. FPS-100-100-5-2068(10).pdf

Solid Bottom
Flat Pad Part Number		 Pad
Length		 Pad
Width		 Pad
Height		 Pad
Opening
Size		 Pad
Weight		 Adobe_pdf_logo
PDF File
FPSB-26-52-4-1126(6) 26 in. 52 in. 4 in. 11 x 25.75 213 Lbs. FPSB-26-52-4-1126(6).pdf
FPSB-30-30-3-1016(6) 30 in. 30 in. 3 in. 10 x 16 -- Lbs.
FPSB-38-42-3.25-2012(7.5) 42 in. 38 in. 3.25 in. 12 x 20 -- Lbs.
FPSB-40-40-3.5-1225(6) 40 in. 40 in. 3.5 in. 12 x 25 -- Lbs.
FPSB-42-42-4-1326(5) 42 in. 42 in. 4 in. 13 x 25.75 251 Lbs. FPSB-42-42-4-1326(5).pdf
FPSB-42-45-4-2512(6) 45 in. 42 in. 4 in. 12 x 25 -- Lbs.
FPSB-42-48-4-2612(4) 48 in. 42 in. 4 in. 12 x 26 -- Lbs.
FPSB-42-48-4-2626(4) 48 in. 42 in. 4 in. 26 x 26 -- Lbs.
FPSB-44-48-4-2424(8) 48 in. 44 in. 4 in. 24 x 24 -- Lbs.
FPSB-46-46-4-1228(7) 46 in. 46 in. 4 in. 12 x 28 301 Lbs. FPSB-46-46-4-1228(7).pdf
FPSB-48-48-4-1227(8) 48 in. 48 in. 4 in. 12 x 27 -- Lbs.
FPSB-48-54-4-1225(6) 48 in. 54 in. 4 in. 12 x 25 -- Lbs.
FPSB-58-70-5-1646(12) 58 in. 70 in. 5 in. 16 x 46 776 Lbs. FPSB-58-70-5-1646(12).pdf
FPSB-60-84-5-1548(6) 60 in. 84 in. 5 in. 15 x 48 -- Lbs.
FPSB-65-72-4-1649(6) 65 in. 72 in. 4 in. 16 x 49 760 Lbs. FPSB-65-72-4-1649(6).pdf
FPSB-72-84-5-2052(10) 72 in. 84 in. 5 in. 20 x 52 1043 Lbs. FPSB-72-84-5-2052(10).pdf

*Flat pads with "LLWW(X)" in the part numbers do not have a standard opening size.  When ordering your flat pad, please specify the size and location of the opening.
