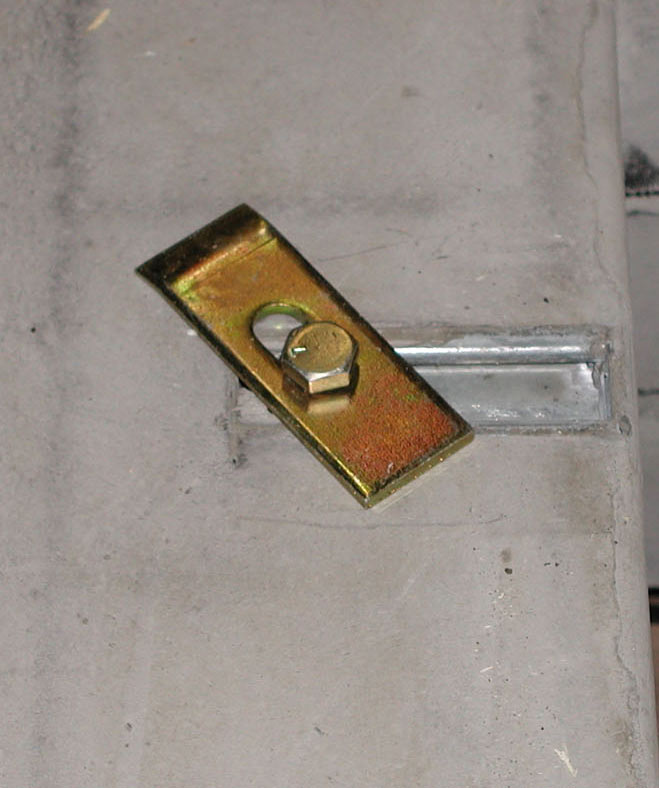

Photo of flat pad hardware - specifically a hold-down clamp installed into cast-in unistrut. Photo of flat pad hardware - specifically a hold-down clamp installed into cast-in unistrut.

Link to Flat Pad PhotosFlat Pad Photo Album

Three Phase Transformer Flat Pads

There are numerous Fibercrete® flat pad sizes available to support three phase transformers.  The pads listed below have waffled bottoms, but solid bottom pads are also available. Besides decreasing pad weight, waffling out the bottom surface of the pad aids in field leveling during product installation.   If you want a solid bottom pad number, then just add an SB to the part number. For example, use the FPSB-58-70-5-1646(12) for a 58 inch x 70 inch solid bottom pad.  The list below is a small compiliation of some of our most frequently ordered pads, but many other sizes and opening configurations are available upon request.  We offer other customization options including clamps, toggle nuts,threaded inserts, and unistrut.

Adobe_pdf_logo Flat Pad Specifications
 Adobe_pdf_logo Flat Pad Installation Guidelines
 Adobe_pdf_logo Flat Pad Catalog
Adobe_pdf_logo Flat Pad Generic Drawing for Mark-Up

Waffle Bottom
Part Number		 Pad
Length		 Pad
Width		 Pad
Height		 Pad
Opening
Size		 Pad
Weight		 Adobe_pdf_logo
PDF File
FP-58-70-5-1646(12) 58 in. 70 in. 5 in. 16 x 46 681 Lbs. FP-58-70-5-1646(12).pdf
FP-60-84-5-1548(6) 60 in. 84 in. 5 in. 15 x 48 -- Lbs.
FP-65-72-4-1649(6) 65 in. 72 in. 4 in. 16 x 49 642 Lbs. FP-65-72-4-1649(6).pdf
FP-72-84-5-2052(10) 72 in. 84 in. 5 in. 20 x 52 880 Lbs. FP-72-84-5-2052(10).pdf
FP-83-88-5-XXXX* 83 in. 88 in. 5 in. XXXX -- Lbs.
FP-83-94-5-XXXX* 83 in. 94 in. 5 in. XXXX -- Lbs.
FP-92-96-8-XXXX* 92 in. 96 in. 8 in. XXXX -- Lbs.
FP-100-100-5-2068(10) 99.5 in. 99.5 in. 5 in. 20 x 68 2249 Lbs. FP-100-100-5-2068(10).pdf


Lightweight Pad
Part Number		 Pad
Length		 Pad
Width		 Pad
Height		 Pad
Opening
Size		 Pad
Weight		 Adobe_pdf_logo
PDF File
FC-58-70-5-1646(12) 58 in. 70 in. 5 in. 16 x 46 330 Lbs. FC-58-70-5-1646(12).pdf
FC-60-84-5-1548(6) 60 in. 84 in. 5 in. 15 x 48 -- Lbs.
FC-65-72-4-1649(6) 65 in. 72 in. 4 in. 16 x 49 344 Lbs. FC-65-72-4-1649(6).pdf
FC-72-84-5-2052(10) 72 in. 84 in. 5 in. 20 x 52 487 Lbs. FC-72-84-5-2052(10).pdf
FC-83-88-5-XXXX* 83 in. 88 in. 5 in. XXXX -- Lbs.
FC-83-94-5-XXXX* 83 in. 94 in. 5 in. XXXX -- Lbs.
FC-92-96-8-XXXX* 92 in. 96 in. 8 in. XXXX -- Lbs.
FC-100-100-5-2068(10) 99.5 in. 99.5 in. 5 in. 20 x 68 797 Lbs. FC-100-100-5-2068(10).pdf

*Flat pads with "X" in the part numbers do not have a standard opening size.  When ordering your flat pad, please specify the size and location of the opening.
