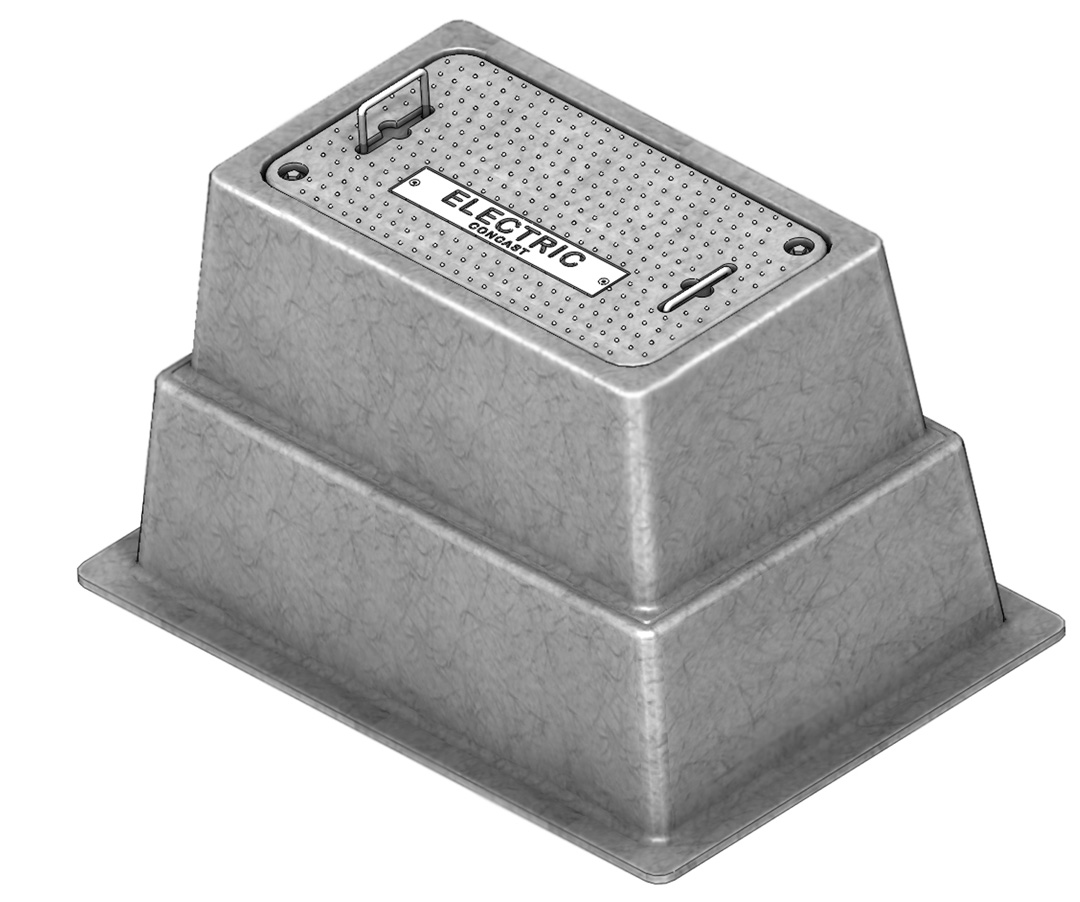

CAD generated isometric image of a fibercrete pedestrian rated cover set on a short 12 inch base for a handhole unit. CAD generated isometric image of a fibercrete pedestrian rated cover set on a short 12 inch base for a hand hole unit.
CAD generated isometeric image of a fibercrete pedestrian rated cover with lifting rings. CAD generated isometeric image of a fibercrete pedestrian rated cover with lifting rings.
CAD generated image of stacked/nested Fibercrete ® handhole units. CAD generated image of stacked/nested Fibercrete ® hand hole units.
Photo close-up view of the hardware used in Fibercrete ® handhole cover Photo close-up view of the hardware used in Fibercrete ® hand hole cover.
Photo of a customized “Electric” handhole unit in the yard at Concast Photo of a customized “Electric” hand hole unit in the yard at Concast.

Link to Hand Hole Photo Album  Hand Hole Photo Album

Pedestrian Rated Fibercrete Handhole

Concast's line of customizable Fibercrete®  handhole units are a great lightweight alternative when you need a small access box with no bottom. Our handhole units include a fibercrete cover with an anti-slip textured surface. The covers have flush lifting rings built into them for easy onsite handling. They also come with penta head locking capabilities to make your handhole units tamper proof after they have been installed.   Other optional hardware that can be included are holes, knockouts, guide posts, and lifting equipment.

These units can be made with utility identification markings built into the covers.  When ordering, please specify the marking that you want by adding the correct suffix to the end of the part number.  For example, to have "ELEC" added to the cover of a 24" x 36" x 12" box, the part number would be FH-24-36-12-E.  See details below.

Adobe_pdf_logo Handhole Specifications
Adobe_pdf_logo Installation Guidelines
Adobe_pdf_logo Handhole Catalog

Handhole
Part Number		 Outside
Width		 Outside
Length		 Outside
Height		 Adobe_pdf_logo
PDF File
FH-18-18-12 18 in. 18 in. 12 in. FH-18-18-12.pdf
FH-18-18-18 18 in. 18 in. 18 in. FH-18-18-18.pdf
FH-18-30-12 18 in. 30 in. 12 in. FH-18-30-12.pdf
FH-18-30-18 18 in. 30 in. 18 in. FH-18-30-18.pdf
FH-18-30-24 18 in. 30 in. 24 in. FH-18-30-24.pdf
FH-24-36-12 24 in. 36 in. 12 in. FH-24-36-12.pdf
FH-24-36-18 24 in. 36 in. 18 in. FH-24-36-18.pdf
FH-24-36-24 24 in. 36 in. 24 in. FH-24-36-24.pdf
FH-24-36-30 24 in. 36 in. 30 in. FH-24-36-30.pdf

*If you need a non-standard FH unit, print out and mark up the appropriate drawing from the chart above, with your design requirements such as hole locations and optional accessories. Then email it to us and someone from Concast's engineering team will get back to you within one business day with their recommendations.

*Use one of the below suffixes in conjunction with a standard part number to specify the desired utility identification markings in your FH unit cover. For example, an "FH-12-18-12-W" unit would have the word "WATER" built into it. Use chart below to choose the correct part number for ordering.

Part Number Suffix Cover Marking
-C COMM
-E ELEC
-F FIBER
-G GAS
-L LIGHT
-W WATER
No suffixNo lettering
