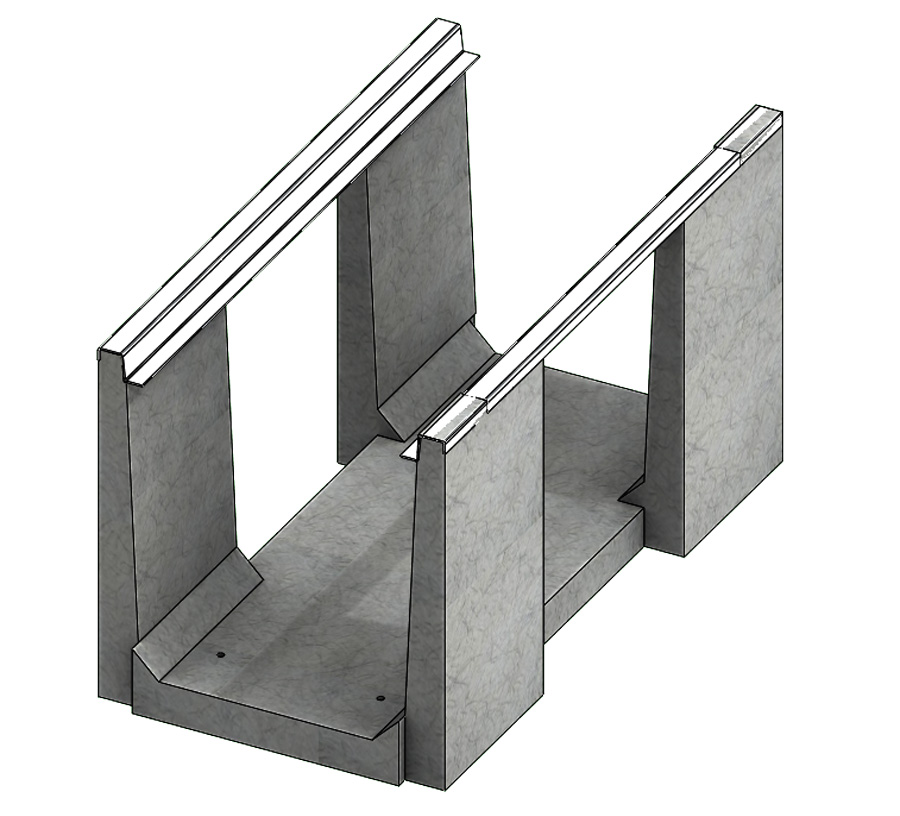

Pedestrian Rated 24" Deep Universal PT ChannelUniversal PT channels are generally used wherever an ell, tee, or cross is needed in a pedestrian traffic trench run. Available in 3 depths, including 16" & 12" deep; universal PT channels are shipped with removable aluminum cover supports mounted to the top ledges.
|
Ped Trench Photos
| Universal PT Concrete Channel |
Width Channel ID (Inches) |
Depth Channel ID (Inches) |
Length Channel (Inches) |
ACadDwg Block |
|---|---|---|---|---|
| 802224PT (20X20) | 20 | 12 | 48 | 802224PT (20X20) |
| 802224PT (0X20) | 20 | 12 | 48 | 802224PT (0X20) |
| 802224PT (20X0) | 20 | 12 | 48 | 802224PT (20X0) |
| 802624PT (24X24) | 24 | 12 | 48 | 802624PT (24X24) |
| 802624PT (0X24) | 24 | 12 | 48 | 802624PT (0X24) |
| 802624PT (24X0) | 24 | 12 | 48 | 802624PT (24X0) |
| 803224PT (30X30) | 30 | 12 | 48 | 803224PT (30X30) |
| 803224PT (0X30) | 30 | 12 | 48 | 803224PT (0X30) |
| 803224PT (30X0) | 30 | 12 | 48 | 803224PT (30X0) |
| 804224PT (40X40) | 40 | 12 | 72 | 804224PT (40X40) |
| 804224PT (0X40) | 40 | 12 | 72 | 804224PT (0X40) |
| 804224PT (40X0) | 40 | 12 | 72 | 804224PT (40X0) |
| 885224PT (50X50) | 50 | 12 | 96 | 885224PT (50X50) |
| 885224PT (0X50) | 50 | 12 | 96 | 885224PT (0X50) |
| 885224PT (50X0) | 50 | 12 | 96 | 885224PT (50X0) |
Cover Options: Fibercrete | Steel Galvanized | Aluminum | Ventilated | Fiberglass | Polymer
