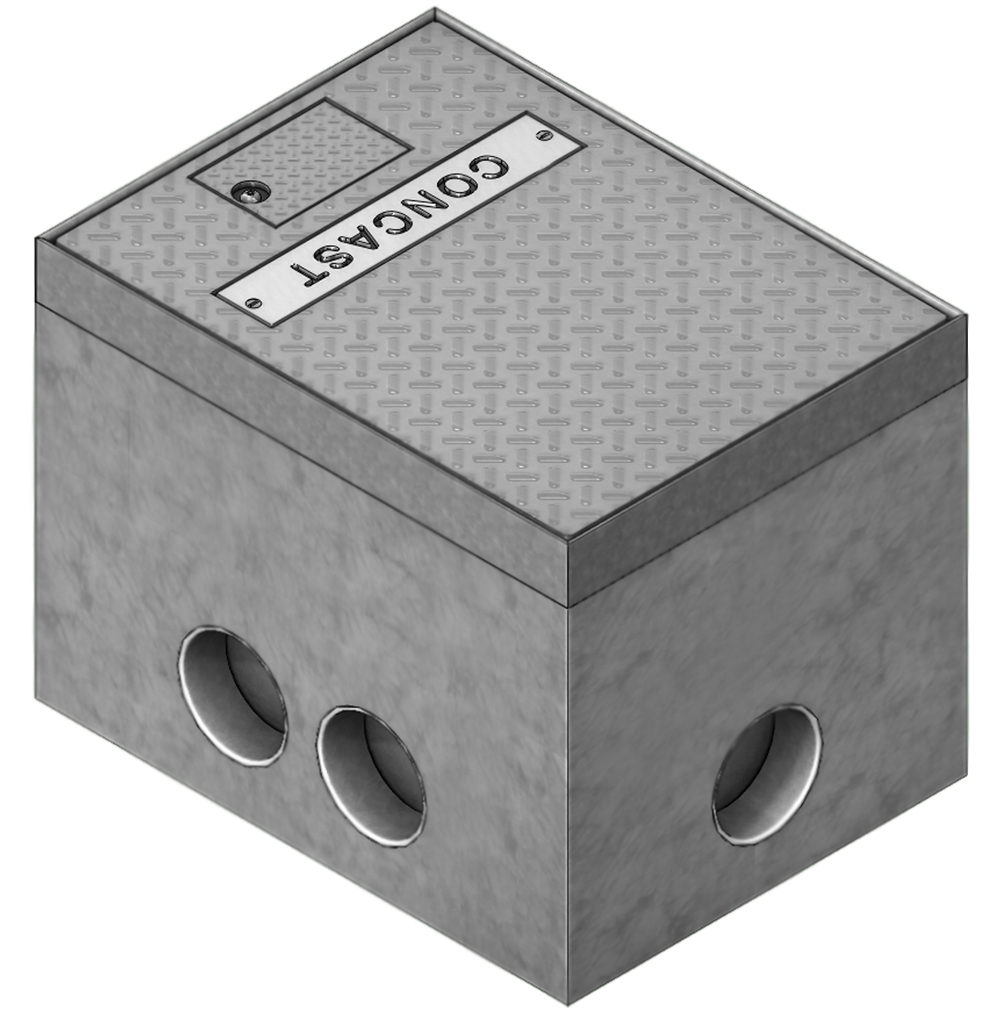

Double Security Padlocking HandholeExtra security for your valuable copper wiring is achieved via a double access system. The exterior access door uses either a PentaHead bolt or a custom keyed "SureLock" security bolt that can only be removed with a Concast-supplied Surelock Tool (P/N: 8000SL). Once the access door has been unlocked, a padlock tab is available. Tabs in the frame interlock with the cover for even more security. The padlock compartment measures 4" x 3.75" x 2" deep. The handhole is H20 (Heavy Traffic) rated. |
| OUTSIDE DIMS Length x Width |
INSIDE DIMS Length x Width |
Depth | ASSEMBLED BOX NUMBER Includes SureLock Bolts, Box, Galv. Stl Cover w/Padlock Provision & Frame |
|---|---|---|---|
| 18" X 18" | 12" X 12" | 12 in. | FHRSLP-18-18-12 |
| 18 in. | FHRSLP-18-18-18 | ||
| 24 in. | FHRSLP-18-18-24 | ||
| 30 in. | FHRSLP-18-18-30 | ||
| 36 in. | FHRSLP-18-18-36 | ||
| 18" X 24" | 12" X 18" | 12 in. | FHRSLP-18-24-12 |
| 18 in. | FHRSLP-18-24-18 | ||
| 24 in. | FHRSLP-18-24-24 | ||
| 30 in. | FHRSLP-18-24-30 | ||
| 36 in. | FHRSLP-18-24-36 | ||
| 18" X 30" | 12" X 24" | 12 in. | FHRSLP-18-30-12 |
| 18 in. | FHRSLP-18-30-18 | ||
| 24 in. | FHRSLP-18-30-24 | ||
| 30 in. | FHRSLP-18-30-30 | ||
| 36 in. | FHRSLP-18-30-36 | ||
| 18" X 36" | 12" X 30" | 12 in. | FHRSLP-18-36-12 |
| 18 in. | FHRSLP-18-36-18 | ||
| 24 in. | FHRSLP-18-36-24 | ||
| 30 in. | FHRSLP-18-36-30 | ||
| 36 in. | FHRSLP-18-36-36 | ||
| 24" X 24" | 18" X 18" | 12 in. | FHRSLP-24-24-12 |
| 18 in. | FHRSLP-24-24-18 | ||
| 24 in. | FHRSLP-24-24-24 | ||
| 30 in. | FHRSLP-24-24-30 | ||
| 36 in. | FHRSLP-24-24-36 | ||
| 24" X 30" | 18" X 24" | 12 in. | FHRSLP-24-30-12 |
| 18 in. | FHRSLP-24-30-18 | ||
| 24 in. | FHRSLP-24-30-24 | ||
| 30 in. | FHRSLP-24-30-30 | ||
| 36 in. | FHRSLP-24-30-36 | ||
| 24" X 36" | 18" X 30" | 12 in. | FHRSLP-24-36-12 |
| 18 in. | FHRSLP-24-36-18 | ||
| 24 in. | FHRSLP-24-36-24 | ||
| 30 in. | FHRSLP-24-36-30 | ||
| 36 in. | FHRSLP-24-36-36 | ||
| 30" X 30" | 24" X 24" | 12 in. | FHRSLP-30-30-12 |
| 18 in. | FHRSLP-30-30-18 | ||
| 24 in. | FHRSLP-30-30-24 | ||
| 30 in. | FHRSLP-30-30-30 | ||
| 36 in. | FHRSLP-30-30-36 | ||
| 30" X 36" | 24" X 30" | 12 in. | FHRSLP-30-36-12 |
| 18 in. | FHRSLP-30-36-18 | ||
| 24 in. | FHRSLP-30-36-24 | ||
| 30 in. | FHRSLP-30-36-30 | ||
| 36 in. | FHRSLP-30-36-36 | ||
| 30" X 48" | 24" X 42" | 12 in. | FHRSLP-30-48-12 |
| 18 in. | FHRSLP-30-48-18 | ||
| 24 in. | FHRSLP-30-48-24 | ||
| 30 in. | FHRSLP-30-48-30 | ||
| 36 in. | FHRSLP-30-48-36 |
| OUTSIDE DIMS Length x Width |
INSIDE DIMS Length x Width |
Depth | ASSEMBLED BOX NUMBER Pentahead Bolts, Box w/Foam Void, Galv Stl Cover & Frame |
|---|---|---|---|
| 18" X 18" | 12" X 12" | 12 in. | FHRPP-18-18-12 |
| 18 in. | FHRPP-18-18-18 | ||
| 24 in. | FHRPP-18-18-24 | ||
| 30 in. | FHRPP-18-18-30 | ||
| 36 in. | FHRPP-18-18-36 | ||
| 18" X 24" | 12" X 18" | 12 in. | FHRPP-18-24-12 |
| 18 in. | FHRPP-18-24-18 | ||
| 24 in. | FHRPP-18-24-24 | ||
| 30 in. | FHRPP-18-24-30 | ||
| 36 in. | FHRPP-18-24-36 | ||
| 18" X 30" | 12" X 24" | 12 in. | FHRPP-18-30-12 |
| 18 in. | FHRPP-18-30-18 | ||
| 24 in. | FHRPP-18-30-24 | ||
| 30 in. | FHRPP-18-30-30 | ||
| 36 in. | FHRPP-18-30-36 | ||
| 18" X 36" | 12" X 30" | 12 in. | FHRPP-18-36-12 |
| 18 in. | FHRPP-18-36-18 | ||
| 24 in. | FHRPP-18-36-24 | ||
| 30 in. | FHRPP-18-36-30 | ||
| 36 in. | FHRPP-18-36-36 | ||
| 24" X 24" | 18" X 18" | 12 in. | FHRPP-24-24-12 |
| 18 in. | FHRPP-24-24-18 | ||
| 24 in. | FHRPP-24-24-24 | ||
| 30 in. | FHRPP-24-24-30 | ||
| 36 in. | FHRPP-24-24-36 | ||
| 24" X 30" | 18" X 24" | 12 in. | FHRPP-24-30-12 |
| 18 in. | FHRPP-24-30-18 | ||
| 24 in. | FHRPP-24-30-24 | ||
| 30 in. | FHRPP-24-30-30 | ||
| 36 in. | FHRPP-24-30-36 | ||
| 24" X 36" | 18" X 30" | 12 in. | FHRPP-24-36-12 |
| 18 in. | FHRPP-24-36-18 | ||
| 24 in. | FHRPP-24-36-24 | ||
| 30 in. | FHRPP-24-36-30 | ||
| 36 in. | FHRPP-24-36-36 | ||
| 30" X 30" | 24" X 24" | 12 in. | FHRPP-30-30-12 |
| 18 in. | FHRPP-30-30-18 | ||
| 24 in. | FHRPP-30-30-24 | ||
| 30 in. | FHRPP-30-30-30 | ||
| 36 in. | FHRPP-30-30-36 | ||
| 30" X 36" | 24" X 30" | 12 in. | FHRPP-30-36-12 |
| 18 in. | FHRPP-30-36-18 | ||
| 24 in. | FHRPP-30-36-24 | ||
| 30 in. | FHRPP-30-36-30 | ||
| 36 in. | FHRPP-30-36-36 | ||
| 30" X 48" | 24" X 42" | 12 in. | FHRPP-30-48-12 |
| 18 in. | FHRPP-30-48-18 | ||
| 24 in. | FHRPP-30-48-24 | ||
| 30 in. | FHRPP-30-48-30 | ||
| 36 in. | FHRPP-30-48-36 |
| OUTSIDE DIMS Length x Width |
INSIDE DIMS Length x Width |
Depth | ASSEMBLED BOX NUMBER Includes SureLock Bolts, Box, Galv. Stl Cover & Frame |
|---|---|---|---|
| 18" X 18" | 12" X 12" | 12 in. | FHRSL-18-18-12 |
| 18 in. | FHRSL-18-18-18 | ||
| 24 in. | FHRSL-18-18-24 | ||
| 30 in. | FHRSL-18-18-30 | ||
| 36 in. | FHRSL-18-18-36 | ||
| 18" X 24" | 12" X 18" | 12 in. | FHRSL-18-24-12 |
| 18 in. | FHRSL-18-24-18 | ||
| 24 in. | FHRSL-18-24-24 | ||
| 30 in. | FHRSL-18-24-30 | ||
| 36 in. | FHRSL-18-24-36 | ||
| 18" X 30" | 12" X 24" | 12 in. | FHRSL-18-30-12 |
| 18 in. | FHRSL-18-30-18 | ||
| 24 in. | FHRSL-18-30-24 | ||
| 30 in. | FHRSL-18-30-30 | ||
| 36 in. | FHRSL-18-30-36 | ||
| 18" X 36" | 12" X 30" | 12 in. | FHRSL-18-36-12 |
| 18 in. | FHRSL-18-36-18 | ||
| 24 in. | FHRSL-18-36-24 | ||
| 30 in. | FHRSL-18-36-30 | ||
| 36 in. | FHRSL-18-36-36 | ||
| 24" X 24" | 18" X 18" | 12 in. | FHRSL-24-24-12 |
| 18 in. | FHRSL-24-24-18 | ||
| 24 in. | FHRSL-24-24-24 | ||
| 30 in. | FHRSL-24-24-30 | ||
| 36 in. | FHRSL-24-24-36 | ||
| 24" X 30" | 18" X 24" | 12 in. | FHRSL-24-30-12 |
| 18 in. | FHRSL-24-30-18 | ||
| 24 in. | FHRSL-24-30-24 | ||
| 30 in. | FHRSL-24-30-30 | ||
| 36 in. | FHRSL-24-30-36 | ||
| 24" X 36" | 18" X 30" | 12 in. | FHRSL-24-36-12 |
| 18 in. | FHRSL-24-36-18 | ||
| 24 in. | FHRSL-24-36-24 | ||
| 30 in. | FHRSL-24-36-30 | ||
| 36 in. | FHRSL-24-36-36 | ||
| 30" X 30" | 24" X 24" | 12 in. | FHRSL-30-30-12 |
| 18 in. | FHRSL-30-30-18 | ||
| 24 in. | FHRSL-30-30-24 | ||
| 30 in. | FHRSL-30-30-30 | ||
| 36 in. | FHRSL-30-30-36 | ||
| 30" X 36" | 24" X 30" | 12 in. | FHRSL-30-36-12 |
| 18 in. | FHRSL-30-36-18 | ||
| 24 in. | FHRSL-30-36-24 | ||
| 30 in. | FHRSL-30-36-30 | ||
| 36 in. | FHRSL-30-36-36 | ||
| 30" X 48" | 24" X 42" | 12 in. | FHRSL-30-48-12 |
| 18 in. | FHRSL-30-48-18 | ||
| 24 in. | FHRSL-30-48-24 | ||
| 30 in. | FHRSL-30-48-30 | ||
| 36 in. | FHRSL-30-48-36 |
| OUTSIDE DIMS Length x Width |
INSIDE DIMS Length x Width |
Depth | ASSEMBLED BOX NUMBER Includes SureLock Bolts, Box, Galv. Stl Cover w/Padlock Provision & Frame |
|---|---|---|---|
| 18" X 18" | 12" X 12" | 12 in. | FHRSLP-18-18-12 |
| 18 in. | FHRSLP-18-18-18 | ||
| 24 in. | FHRSLP-18-18-24 | ||
| 30 in. | FHRSLP-18-18-30 | ||
| 36 in. | FHRSLP-18-18-36 | ||
| 18" X 24" | 12" X 18" | 12 in. | FHRSLP-18-24-12 |
| 18 in. | FHRSLP-18-24-18 | ||
| 24 in. | FHRSLP-18-24-24 | ||
| 30 in. | FHRSLP-18-24-30 | ||
| 36 in. | FHRSLP-18-24-36 | ||
| 18" X 30" | 12" X 24" | 12 in. | FHRSLP-18-30-12 |
| 18 in. | FHRSLP-18-30-18 | ||
| 24 in. | FHRSLP-18-30-24 | ||
| 30 in. | FHRSLP-18-30-30 | ||
| 36 in. | FHRSLP-18-30-36 | ||
| 18" X 36" | 12" X 30" | 12 in. | FHRSLP-18-36-12 |
| 18 in. | FHRSLP-18-36-18 | ||
| 24 in. | FHRSLP-18-36-24 | ||
| 30 in. | FHRSLP-18-36-30 | ||
| 36 in. | FHRSLP-18-36-36 | ||
| 24" X 24" | 18" X 18" | 12 in. | FHRSLP-24-24-12 |
| 18 in. | FHRSLP-24-24-18 | ||
| 24 in. | FHRSLP-24-24-24 | ||
| 30 in. | FHRSLP-24-24-30 | ||
| 36 in. | FHRSLP-24-24-36 | ||
| 24" X 30" | 18" X 24" | 12 in. | FHRSLP-24-30-12 |
| 18 in. | FHRSLP-24-30-18 | ||
| 24 in. | FHRSLP-24-30-24 | ||
| 30 in. | FHRSLP-24-30-30 | ||
| 36 in. | FHRSLP-24-30-36 | ||
| 24" X 36" | 18" X 30" | 12 in. | FHRSLP-24-36-12 |
| 18 in. | FHRSLP-24-36-18 | ||
| 24 in. | FHRSLP-24-36-24 | ||
| 30 in. | FHRSLP-24-36-30 | ||
| 36 in. | FHRSLP-24-36-36 | ||
| 30" X 30" | 24" X 24" | 12 in. | FHRSLP-30-30-12 |
| 18 in. | FHRSLP-30-30-18 | ||
| 24 in. | FHRSLP-30-30-24 | ||
| 30 in. | FHRSLP-30-30-30 | ||
| 36 in. | FHRSLP-30-30-36 | ||
| 30" X 36" | 24" X 30" | 12 in. | FHRSLP-30-36-12 |
| 18 in. | FHRSLP-30-36-18 | ||
| 24 in. | FHRSLP-30-36-24 | ||
| 30 in. | FHRSLP-30-36-30 | ||
| 36 in. | FHRSLP-30-36-36 | ||
| 30" X 48" | 24" X 42" | 12 in. | FHRSLP-30-48-12 |
| 18 in. | FHRSLP-30-48-18 | ||
| 24 in. | FHRSLP-30-48-24 | ||
| 30 in. | FHRSLP-30-48-30 | ||
| 36 in. | FHRSLP-30-48-36 |
