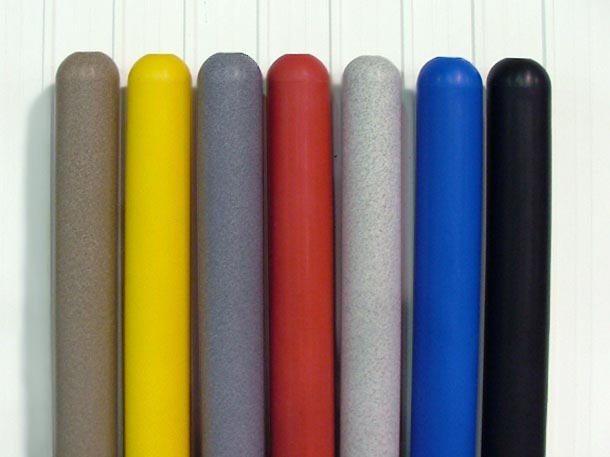

Standard Guide Posts/BollardsGuide posts and safety chain provide protection for your pre-cast concrete products by blocking off vehicular traffic or defining a road way. A hard polyethylene exterior ensures that the color will withstand years of environmental exposure like UV rays and heat. Yellow is the standard color, but the listed other colors are available upon request. These maintenance-free posts are available either hollow, or concrete filled with steel rebar reinforcement. A 3/8-16 UNC threaded insert is located at the top of each post for securing optional safety chain. Other options include standalone guide posts that have a base for temporary protection, and Concast's PE sleeves for existing posts that need to be covered or color-coded. |
| Filled Guide Post Part Number |
Post Color |
Overall Height |
Post Diameter |
Post Interior |
PDF File |
|---|---|---|---|---|---|
| 8005BG-4F | Brown Granite | 88 in. | 4 in. | Concrete Filled | 8005BG-4F.pdf |
| 8005BG-7F | Brown Granite | 88 in. | 7.5 in. | Concrete Filled | 8005BG-7F.pdf |
| 8005BK-4F | Black | 88 in. | 4 in. | Concrete Filled | 8005BK-4F.pdf |
| 8005BK-7F | Black | 88 in. | 7.5 in. | Concrete Filled | 8005BK-7F.pdf |
| 8005BU-4F | Blue | 88 in. | 4 in. | Concrete Filled | 8005BU-4F.pdf |
| 8005BU-7F | Blue | 88 in. | 7.5 in. | Concrete Filled | 8005BU-7F.pdf |
| 8005DG-4F | Dark Granite | 88 in. | 4 in. | Concrete Filled | 8005DG-4F.pdf |
| 8005DG-7F | Dark Granite | 88 in. | 7.5 in. | Concrete Filled | 8005DG-7F.pdf |
| 8005LG-4F | Light Granite | 88 in. | 4 in. | Concrete Filled | 8005LG-4F.pdf |
| 8005LG-7F | Light Granite | 88 in. | 7.5 in. | Concrete Filled | 8005LG-7F.pdf |
| 8005R-4F | Red | 88 in. | 4 in. | Concrete Filled | 8005R-4F.pdf |
| 8005R-7F | Red | 88 in. | 7.5 in. | Concrete Filled | 8005R-7F.pdf |
| 8005Y-4F | Yellow | 88 in. | 4 in. | Concrete Filled | 8005Y-4F.pdf |
| 8005Y-7F | Yellow | 88 in. | 7.5 in. | Concrete Filled | 8005Y-7F.pdf |
| Hollow Guide Post Part Number |
Post Color |
Overall Height |
Post Diameter |
Post Interior |
PDF File |
|---|---|---|---|---|---|
| 8005BG-4H | Brown Granite | 88 in. | 4 in. | Hollow | 8005BG-4H.pdf |
| 8005BG-7H | Brown Granite | 88 in. | 7.5 in. | Hollow | 8005BG-7H.pdf |
| 8005BK-4H | Black | 88 in. | 4 in. | Hollow | 8005BK-4H.pdf |
| 8005BK-7H | Black | 88 in. | 7.5 in. | Hollow | 8005BK-7H.pdf |
| 8005BU-4H | Blue | 88 in. | 4 in. | Hollow | 8005BU-4H.pdf |
| 8005BU-7H | Blue | 88 in. | 7.5 in. | Hollow | 8005BU-7H.pdf |
| 8005DG-4H | Dark Granite | 88 in. | 4 in. | Hollow | 8005DG-4H.pdf |
| 8005DG-7H | Dark Granite | 88 in. | 7.5 in. | Hollow | 8005DG-7H.pdf |
| 8005LG-4H | Light Granite | 88 in. | 4 in. | Hollow | 8005LG-4H.pdf |
| 8005LG-7H | Light Granite | 88 in. | 7.5 in. | Hollow | 8005LG-7H.pdf |
| 8005R-4H | Red | 88 in. | 4 in. | Hollow | 8005R-4H.pdf |
| 8005R-7H | Red | 88 in. | 7.5 in. | Hollow | 8005R-7H.pdf |
| 8005Y-4H | Yellow | 88 in. | 4 in. | Hollow | 8005Y-4H.pdf |
| 8005Y-7H | Yellow | 88 in. | 7.5 in. | Hollow | 8005Y-7H.pdf |
