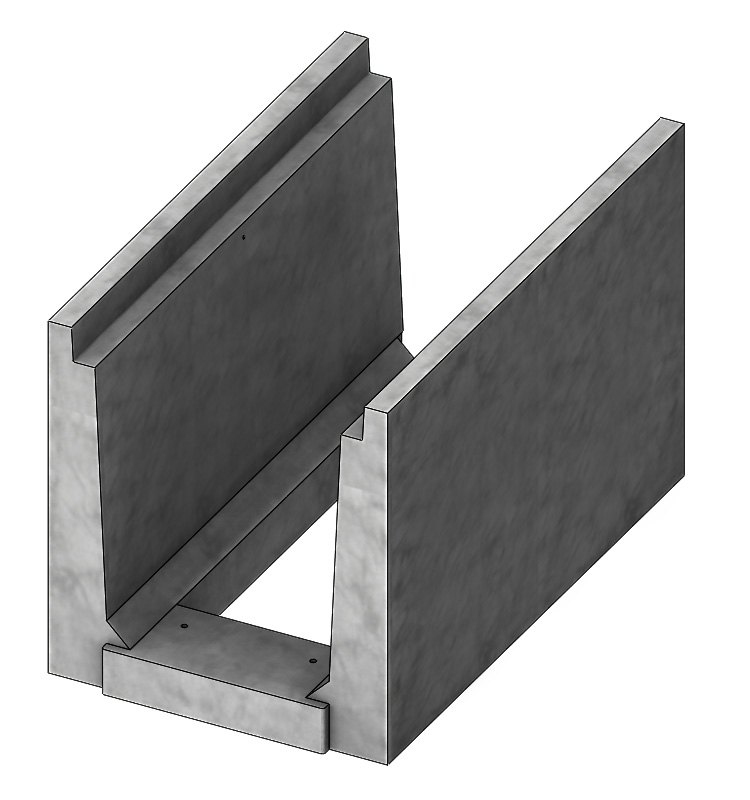

Isometric view of light traffic 24 inch deep std open bottom channel

Link to Photo AlbumLT Trench Photos

Light Traffic H-10 Rated Open Bottom 24" Depth Channel

Reinforced with steel, Concast standard concrete light traffic channel will all support a minimum of 16,000 lbs. per axle load, which is AASHTO H-10. Four 1/2 inch threaded inserts are cast into the floor of the part for safe lifting.

Open Bottom Channel  *  Used With 3 Inch Thick Covers
SG Top Rail FRP Top Rail Width X Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801024LT LTF1024 48" 10 X 24 48 801024LT
802024LT LTF2024 48" 20 X 24 48 802024LT
802424LT LTF2424 48" 24 X 24 48 802424LT
803024LT LTF3024 48" 30 X 24 48 803024LT
804024LT LTF4024 48" 50 X 24 48 804024LT
881024LT LTF1024 10 X 24 96 881024LT
882024LT LTF2024 20 X 24 96 882024LT
882424LT LTF2424 24 X 24 96 882424LT
883024LT LTF3024 30 X 24 96 883024LT
884024LT LTF4024 40 X 24 96 884024LT

Cover Options:   Fibercrete      |      Galvanized Steel     |      Concrete      |      Ventilated
