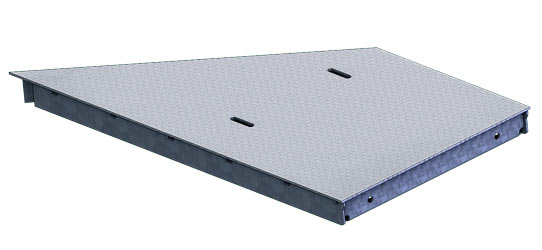

Isometric view thumbnail of Concast's angled HTSG channel cover

Link to the trench photo album Trench

Heavy Traffic Rated Angled Concrete Covers

Angled covers fit onto Concast's corner channels.  For example, a 22.5R cover is the right half of a 45 degree corner section.  Concast's galvanized steel covers are designed to support heavy traffic  loads of at least 32,000 lbs/ axle load.  Covers are generally moved with the 8000 tool; however, if machine-assisted lifting is preferred, the 8000L tool is an option.

2" Thick Corner Covers   *   Used With HT0608 Angled Channel
HTCSG06
Angled Covers
Width
(Inches)
Length
(Inches)
Angle
of Corner
Weight
(Pounds)
Traffic
Rating
HTCSG06 22.5R
HTCSG06 22.5L
8.88 47.13 45 -- H-20
HTCSG06 45R
HTCSG06 45L
8.88 45.88 90 -- H-20


3" Thick Corner Covers   *   Used With HT3 & HT12XX Angled Channel
HTSG
Angled Covers
Width
(Inches)
Length
(Inches)
Angle
Of Corner
Weight
(Pounds)
Traffic
Rating
8011HTSG 22.5R
8011HTSG 22.5L
14.88 47.13 45 93 H-20
8011HTSG 45R
8011HTSG 45L
14.88 45.88 90 -- H-20
8021HTSG 22.5R
8021HTSG 22.5L
24.88 23.13 45 63 H-20
8021HTSG 45R
8021HTSG 45L
24.88 45.88 90 118 H-20
8025HTSG 22.5R
8025HTSG 22.5L
28.88 23.13 45 69 H-20
8025HTSG 45R
8025HTSG 45L
28.88 45.88 90 127 H-20
8031HTSG 22.5R
8031HTSG 22.5L
34.88 23.13 45 76 H-20
8031HTSG 45R
8031HTSG 45L
34.88 45.88 90 138 H-20
8041HTSG 22.5R
8041HTSG 22.5L
44.88 47.13 45 -- H-20
8041HTSG 45R
8041HTSG 45L
44.88 69.88 45 -- H-20


4" Thick Corner Covers   *   Used With 8041HT4 Angled Channel
HT4SG
Angled Covers
Width
(Inches)
Length
(Inches)
Angle
of Corner
Weight
(Pounds)
Traffic
Rating
8041HT4SG 22.5R
8041HT4SG 22.5L
44.88 47.13 45 -- H-20
8041HT4SG 45R
8041HT4SG 45L
44.88 45.88 90 -- H-20


6.5" Thick Corner Covers   *   Used With HT Angled Channel
HTSG40
Angled Covers
Width
(Inches)
Length
(Inches)
Angle
Of Corner
Weight
(Pounds)
Traffic
Rating
8011HTSG40 22.5R
8011HTSG40 22.5L
16.63 47.06 45 -- H-40
8011HTSG40 45R
8011HTSG40 45L
16.63 45.81 90 -- H-40
8021HTSG40 22.5R
8021HTSG40 22.5L
26.63 23.06 45 -- H-40
8021HTSG40 45R
8021HTSG40 45L
30.63 45.81 90 -- H-40
8025HTSG40 22.5R
8025HTSG40 22.5L
30.63 23.06 45 -- H-40
8025HTSG40 45R
8025HTSG40 45L
36.63 45.81 90 -- H-40
8031HTSG40 22.5R
8031HTSG40 22.5L
36.63 23.06 45 -- H-40
8031HTSG40 45R
8031HTSG40 45L
46.63 45.81 90 191 H-40
8041HTSG40 22.5R
8041HTSG40 22.5L
46.63 47.06 45 328 H-40
8041HTSG40 45R
8041HTSG40 45L
44.88 69.88 90 -- H-40
