Heavy Traffic Rated 36" Depth Angled ChannelReinforced with steel, Concast standard concrete heavy traffic channel will all support a minimum of 32,000 lbs. per axle load, which is AASHTO H-20. Standard corners are 45 degree and 90 degree. |
HT Trench Photos
| Angled Channel * Used With 3 Inch Thick Covers | ||||||
|---|---|---|---|---|---|---|
| SG Top Rail | FRP Top Rail | Width Channel ID (Inches) |
Length (Inches) |
Angle of Corner |
ACadDwg Block |
|
|
802036HT3 22.5R 802036HT3 22.5L |
HTF2036 22.5R HTF2036 22.5L |
20 | 48 | 45 | 802036HT3 22.5R 802036HT3 22.5L |
|
|

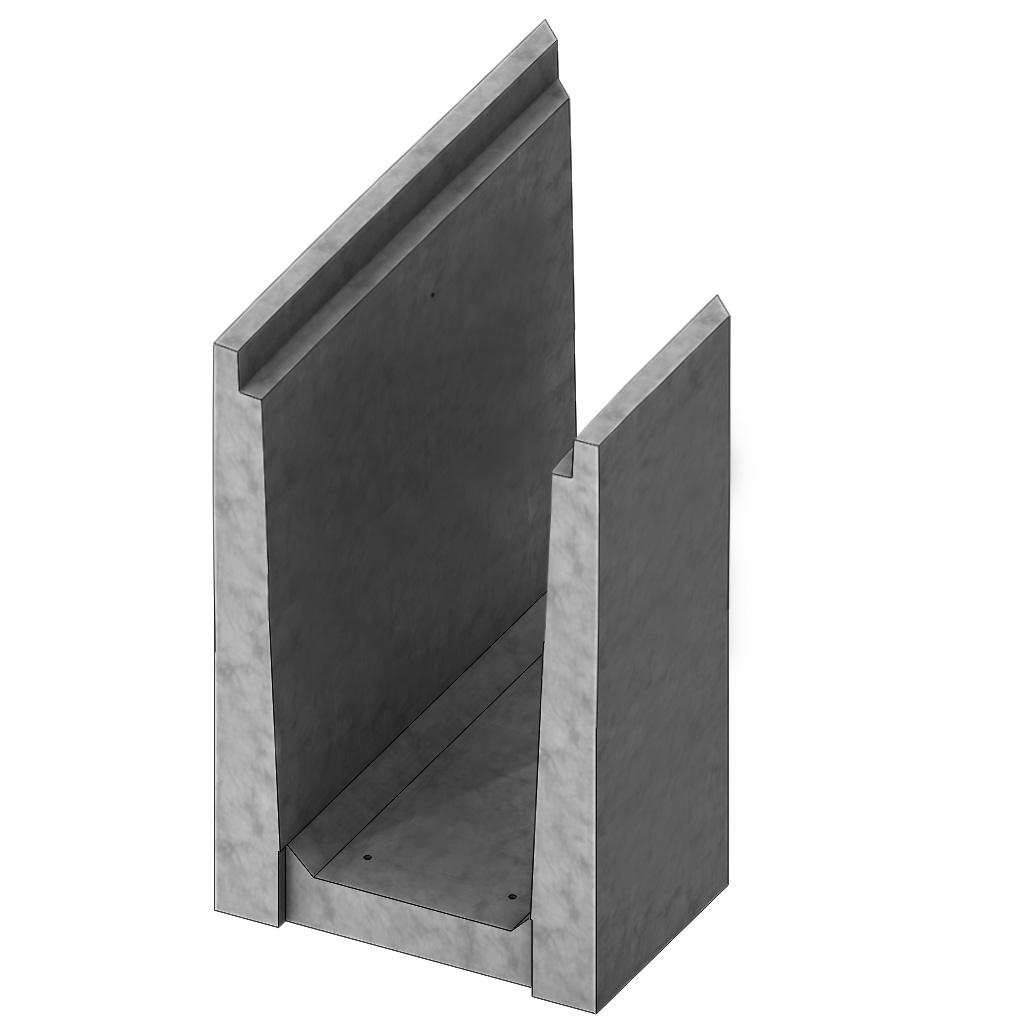

802036HT3 45R 802036HT3 45L |
HTF2436 45R HTF2436 45L |
20 | 48 | 90 | 802036HT3 45R 802036HT3 45L |
|
|
802436HT3 22.5R 802436HT3 22.5L |
HTF2436 22.5R HTF2436 22.5L |
36 | 48 | 45 | 802436HT3 22.5R 802436HT3 22.5L |
|
|
802436HT3 45R 802436HT3 45L |
HTF2436 45R HTF2436 45L |
36 | 48 | 90 | 802436HT3 45R 802436HT3 45L |
|
|
803036HT3 22.5R 803036HT3 22.5L |
HTF3036 22.5R HTF3036 22.5L |
30 | 48 | 45 | 803036HT3 22.5R 803036HT3 22.5L |
|
|
803036HT3 45R 803036HT3 45L |
HTF3036 45R HTF3036 45L |
30 | 48 | 90 | 803036HT3
45R 803036HT3 45L |
|
|
804036HT3 22.5R 804036HT3 22.5L |
HTF4036 22.5R HTF4036 22.5L |
40 | 48 | 45 | 804036HT3 22.5R 804036HT3 22.5L |
|
|
804036HT3 45R 804036HT3 45L |
HTF4036 45R HTF4036 45L |
40 | 72 | 90 | 804036HT3 45R 804036HT3 45L |
|
| Angled Channel * Used With 4 Inch Thick Covers | ||||||
|---|---|---|---|---|---|---|
| SG Top Rail | FRP Top Rail | Width Channel ID (Inches) |
Length (Inches) |
Angle of Corner |
ACad Dwg Block |
|
|
804036HT4 22.5R 804036HT4 22.5L |
HT4F4036 22.5R HT4F4036 22.5L |
40 | 48 | 45 | 804036HT4 22.5R 804036HT4 22.5L |
|
|
804036HT4 45R 804036HT4 45L |
HT4F4036 45R HT4F4036 45L |
40 | 72 | 90 | 804036HT4 45R 804036HT4 45L |
|
| Angled Channel * Used With 6.5 Inch Thick Covers | ||||||
|---|---|---|---|---|---|---|
| SG Top Rail | FRP Top Rail | Width Channel ID (Inches) |
Length (Inches) |
Angle of Corner |
ACad Dwg Block |
|
|
802036HT 22.5R 802036HT 22.5L |
HT6F2036 22.5R HT6F2036 22.5L |
20 | 48 | 45 | 802036HT
22.5R 802036HT 22.5L |
|
|
802036HT 45R 802036HT 45L |
HT6F2036 45R HT6F2036 45L |
20 | 48 | 90 | 802036HT
45R 802036HT 45L |
|
|
802436HT 22.5R 802436HT 22.5R |
HT6F2436 22.5R HT6F2436 22.5L |
36 | 48 | 45 | 802436HT
22.5R 802436HT 22.5L |
|
|
802436HT 45R 802436HT 45R |
HT6F2436 45R HT6F2436 45L |
36 | 48 | 90 | 802436HT
45R 802436HT 45L |
|
|
803036HT 22.5R 803036HT 22.5L |
HT6F3036 22.5R HT6F3036 22.5L |
30 | 48 | 45 | 803036HT
22.5R 803036HT 22.5L |
|
|
803036HT 45R 803036HT 45L |
HT6F3036 45R HT6F3036 45L |
30 | 72 | 90 | 803036HT
45R 803036HT 45L |
|
|
804036HT 22.5R 804036HT 22.5L |
HT6F4036 22.5R HT6F4036 22.5L |
40 | 48 | 45 | 804036HT
22.5R 804036HT 22.5L |
|
|
804036HT 45R 804036HT 45L |
HT6F4036 45R HT6F4036 45L |
40 | 72 | 90 | 804036HT
45R 804036HT 45L |
|
|
805036HT 22.5R 805036HT 22.5L |
HT6F5036 22.5R HT6F5036 22.5L |
50 | 48 | 45 | 805036HT
22.5R 805036HT 22.5L |
|
Cover Options: Galvanized Steel * Concrete * Polymer * Ventilated * Fiberglass
